DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS2-4S-1012-RA-254-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Таблицы данных |
RDS2-1012-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS5-4S-1011-RA-254-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Таблицы данных |
RDS5-1011-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1011-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Таблицы данных |
RDS6-1011-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
TDP02H0SBD1RSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
TDP | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
5-5435166-2SWITCH ROCKER DIP SPST |
0 |
|
Таблицы данных |
7000 | Tube | Active | SPST | 7 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
RDS7-4S-1065-73-SMT-TR-67SWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Таблицы данных |
RDS7-1065-SMT-67 | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS4-4S-1065-73-SMT-TR-67SWITCH ROTARY DIP SPST 0.15A 42V |
0 |
|
Таблицы данных |
RDS4-1065-SMT-67 | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
3-1571999-6SWITCH PIANO DIP SPST |
0 |
|
Таблицы данных |
ADP | Tube | Active | SPST | 10 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
SD04H0SB1RSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
Таблицы данных |
SD | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
SDA05H1SBDRSWITCH SLIDE DIP SPST 100MA 5VDC |
0 |
|
Таблицы данных |
SDA | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 5VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.215" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
NDIR03SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
NDI | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
GDS08SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
GDS | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
GDH02STRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
GDH | Tape & Reel (TR) | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
BPA10RBSWITCH PIANO DIP SPST 0.1A 5V |
0 |
|
Таблицы данных |
BPA | Tube | Active | SPST | 10 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
BPA12SBSWITCH PIANO DIP SPST 100MA 5VDC |
0 |
|
Таблицы данных |
BPA | Tube | Active | SPST | 12 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.275" (6.99mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
RDS-10S-1055-SMTSWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
Таблицы данных |
RDS-1055-SMT | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

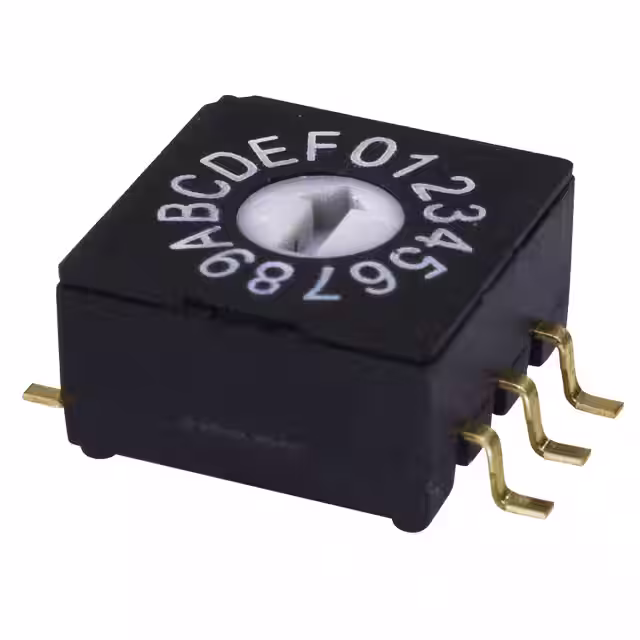

RDS-10S-1045-SMTSWITCH ROTARY DIP BCD 0.025A 24V |
0 |
|
Таблицы данных |
RDS-1045-SMT | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADP05SSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
ADP | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA05SSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
ADPA | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA06SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
ADPA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
