БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADE05SSWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
Таблицы данных |
ADE | Tube | Obsolete | SPST | 5 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
KAE05SGGT-1ON-2345OFFSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KAE | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
219-9LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

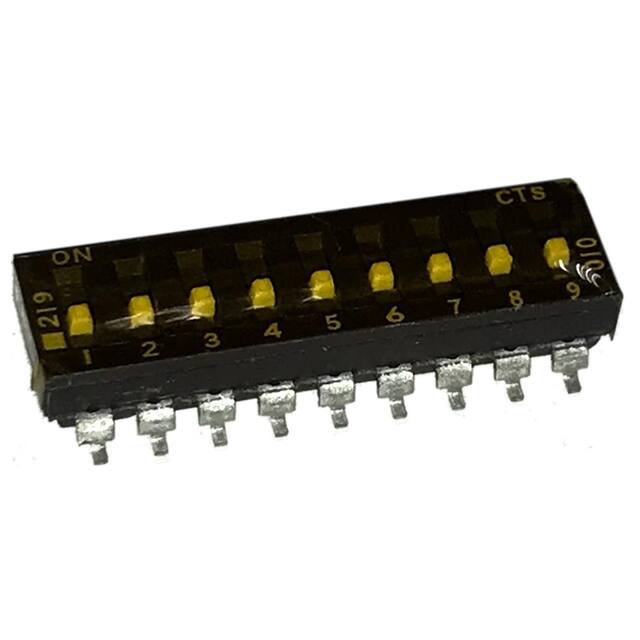

219-9MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
208-8RASTSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
208RA | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

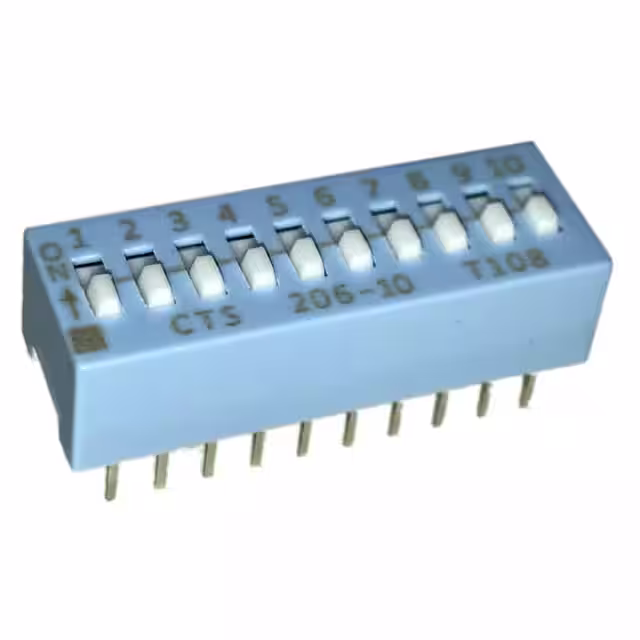

206-10SSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
206 | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
CJS-1200A1SWITCH SLIDE SPDT 100MA 6V |
0 |
|
Таблицы данных |
CJS | Bulk | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
|
CJS-1200B1SWITCH SLIDE SPDT 100MA 6V |
0 |
|
Таблицы данных |
CJS | Bulk | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
|
204-5STRSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
204 | Tape & Reel (TR) | Active | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
ADE05SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
Таблицы данных |
ADE | Tube | Obsolete | SPST | 5 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
CFS-0300TBSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Таблицы данных |
CFS | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
CFS-0401TASWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
Таблицы данных |
CFS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
ADE02SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
Таблицы данных |
ADE | Tube | Obsolete | SPST | 2 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
219-7ESJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
219-7ESJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-7LPSJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-7LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-7MSJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-7MSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-8LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
