БОМ
DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-7MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-7MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-7MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

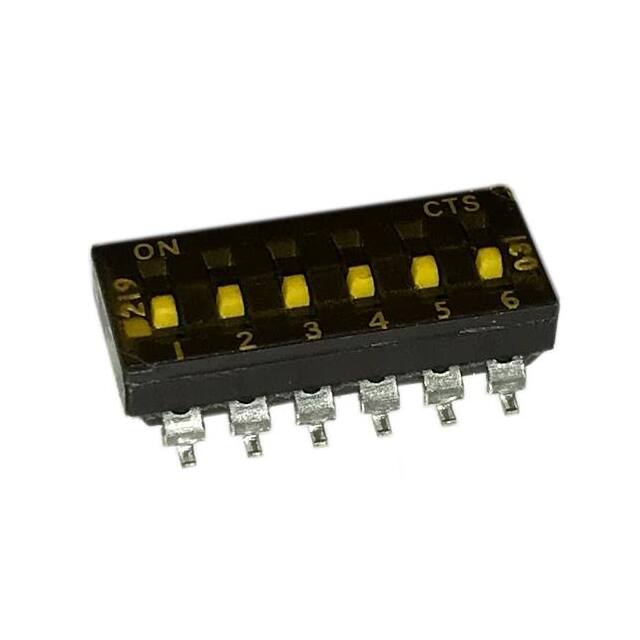

219-6MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
KG06ETSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KG | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
206-8SSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
206 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
KP03RSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KP | Tube | Active | SPST | 3 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR01ETSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KR | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR01RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KR | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

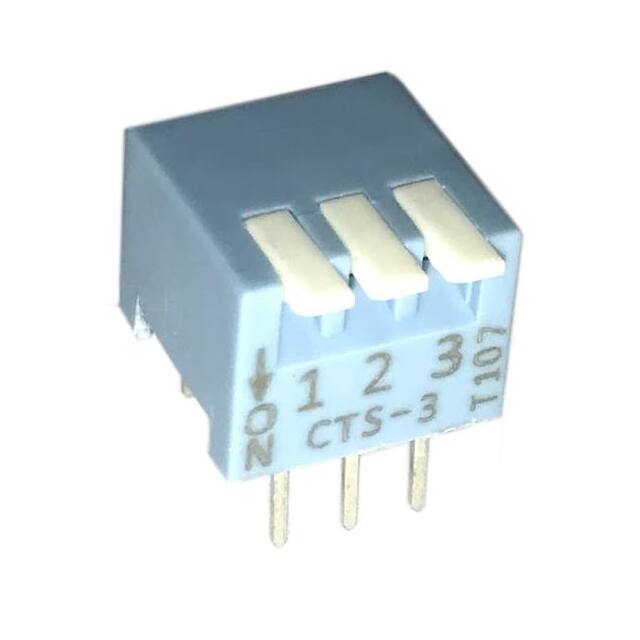

194-3MSSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
194 | Tube | Active | SPST | 3 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

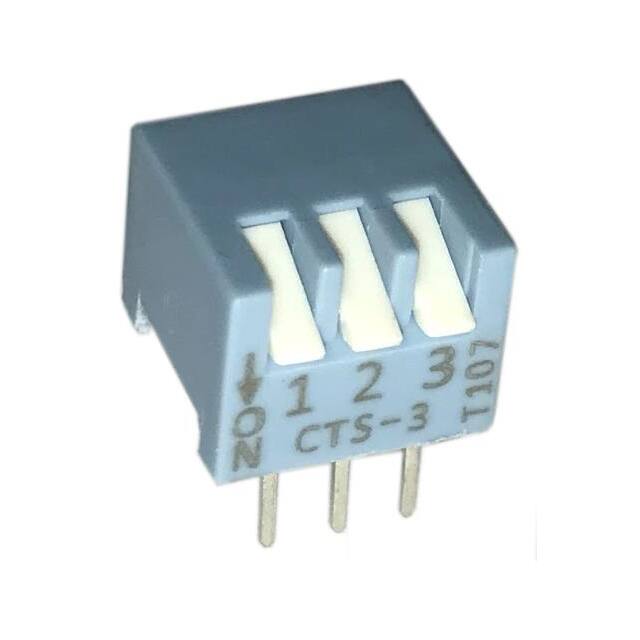

194-3MSNSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
194 | Tube | Active | SPST | 3 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
KAJ04TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAJ04THGRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Таблицы данных |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
219-5ESJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
219-5ESJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-5LPSJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-5LPSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-5MSJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-5MSJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-7LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
219 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
