DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-7LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

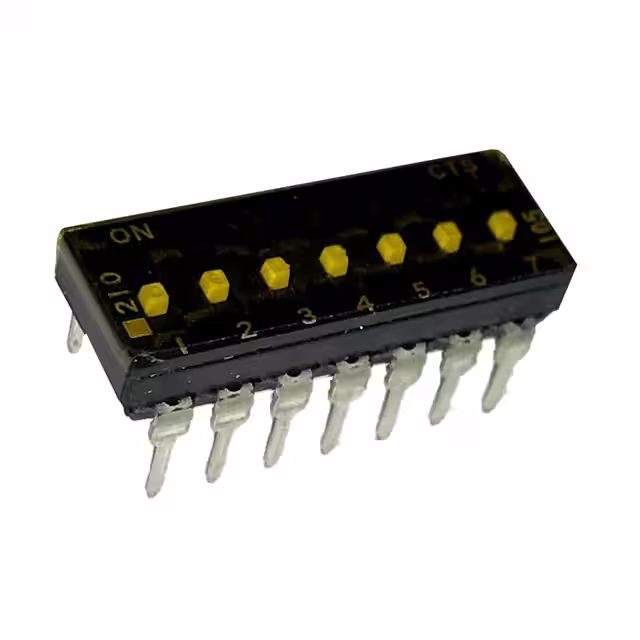

210-7MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
208-4LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
208 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|

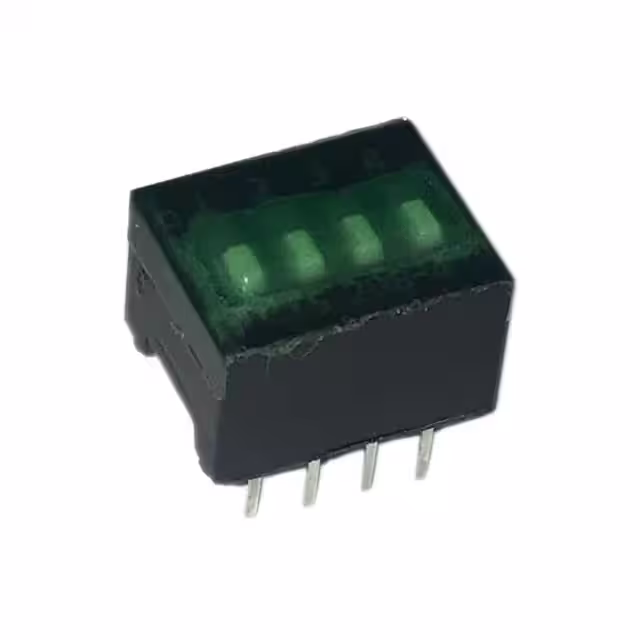

208-4STSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
208 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
436860-7SWITCH SHUNT DIP PROGRAMMABLE |
0 |
|
Таблицы данных |
AMP | Tube | Obsolete | Programmable | 8 | - | - | Breakable (Shunt) | Flush, Recessed | Brass | Tin | 0.125" (3.17mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | - |
|

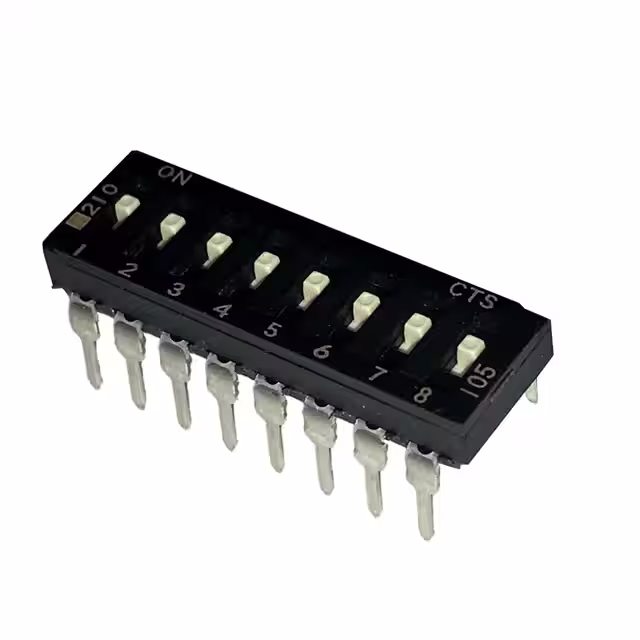

210-8LPSSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-8ESSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

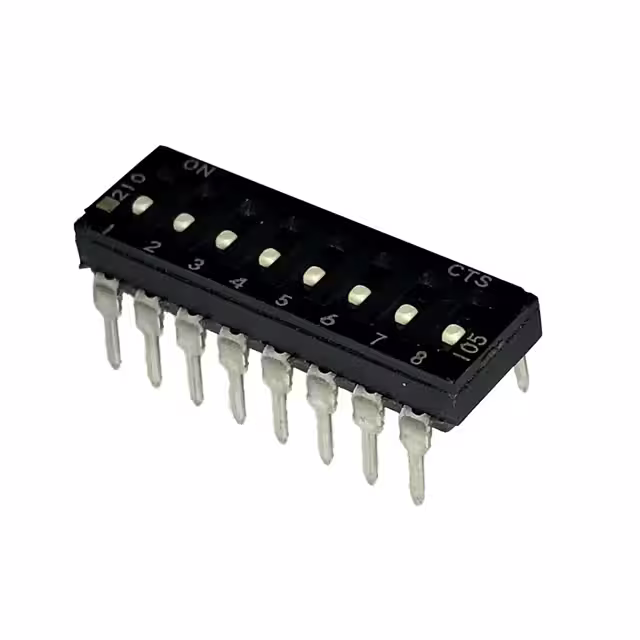

210-8LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

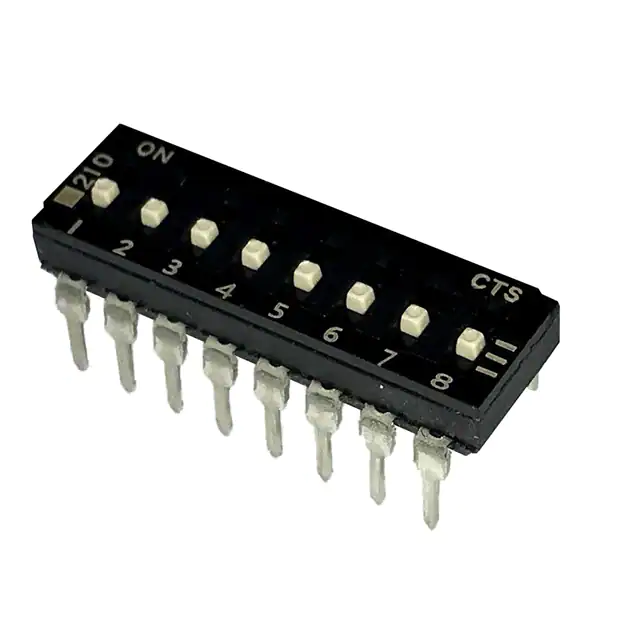

210-8MSFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-8ESFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

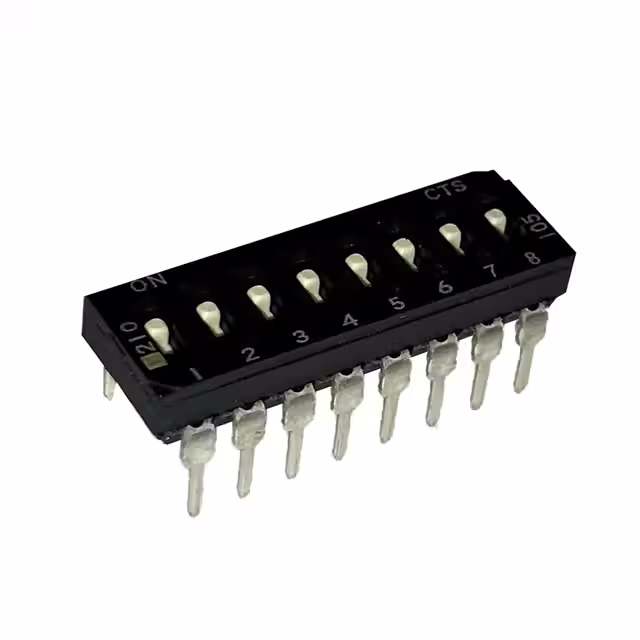

210-8LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

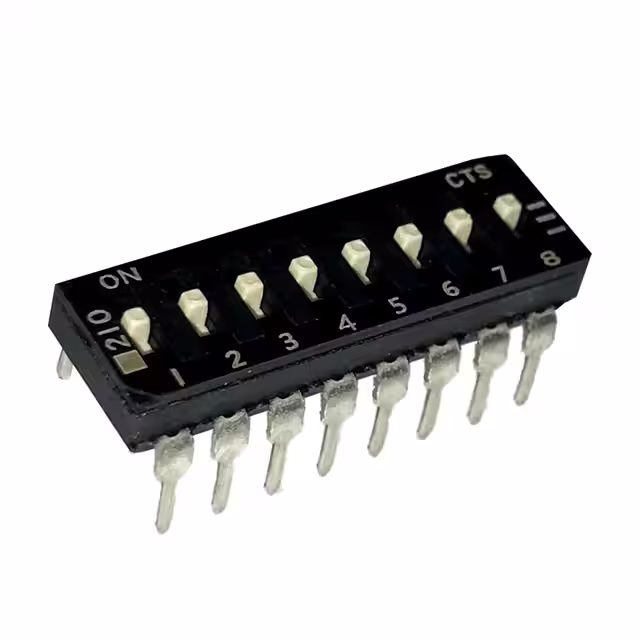

210-8MSDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-8ESDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

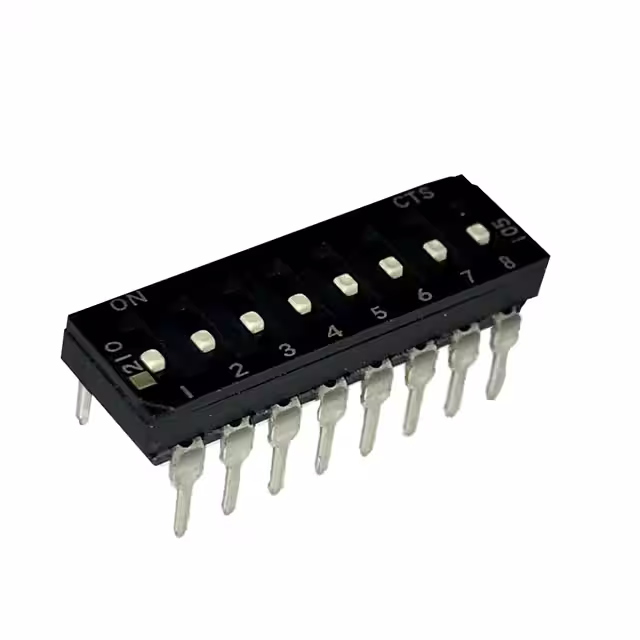

210-8LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

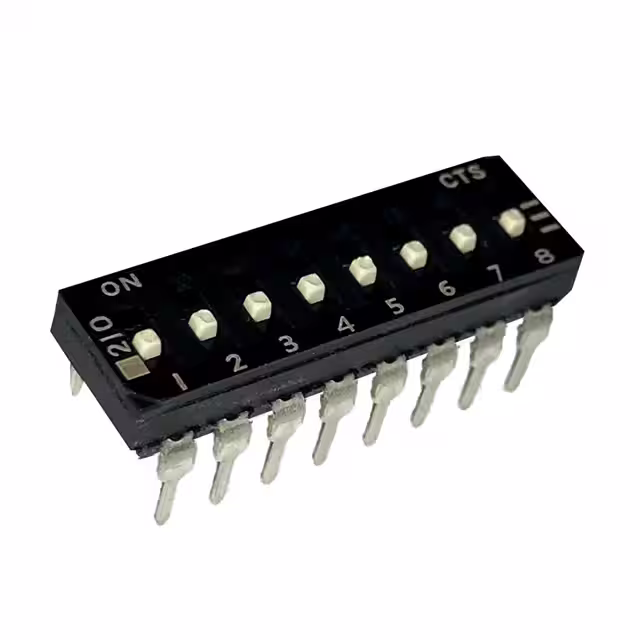

210-8MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-8ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
208-3LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
208 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
208-3STSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
Таблицы данных |
208 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
209-5ESSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
209 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-5ESDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
Таблицы данных |
209 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
