DIP-переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Номинальный ток (Ампер) | Номинальное напряжение | Тип привода | Уровень привода | Материал контакта | Покрытие контакта | Высота над доской | Тип крепления | Тип вывода | Шаг | Моющийся | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDA04H0SBRDIP / ROTARY DIP |
750 |
|
Таблицы данных |
SDA | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6SR0015CSMT LOW PROFILE DIP SWITCH |
408 |
|
Таблицы данных |
A6S-H | Bulk | Active | - | - | 25mA | 24VDC | Piano | - | - | - | - | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6FR0012CSWITCH PIANO DIP 0.025A 24V |
242 |
|
Таблицы данных |
A6FR | Box | Active | - | - | 25mA | 24VDC | Piano | - | - | - | - | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6S 0018GDIP SWITCH |
193 |
|
Таблицы данных |
A6S-H | Bulk | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
KF1001-02P-R0-FS-ON-01BDIP SW, THT, 2POS, EXTRNDED |
1,300,000 |
|
Таблицы данных |
- | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADP0804SWITCH PIANO DIP |
2,099 |
|
Таблицы данных |
DIP | Bulk | Active | SPST | 8 | 100mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
GDH06S04Slide Dip Switch, 6 Switches, SP |
2,468 |
|
Таблицы данных |
DIP | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.31mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -30°C ~ 85°C |
|
BD08SWITCH DIP OFF ON SPST 8 EXTENDE |
790 |
|
Таблицы данных |
BD | Bulk | Active | SPST | 8 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

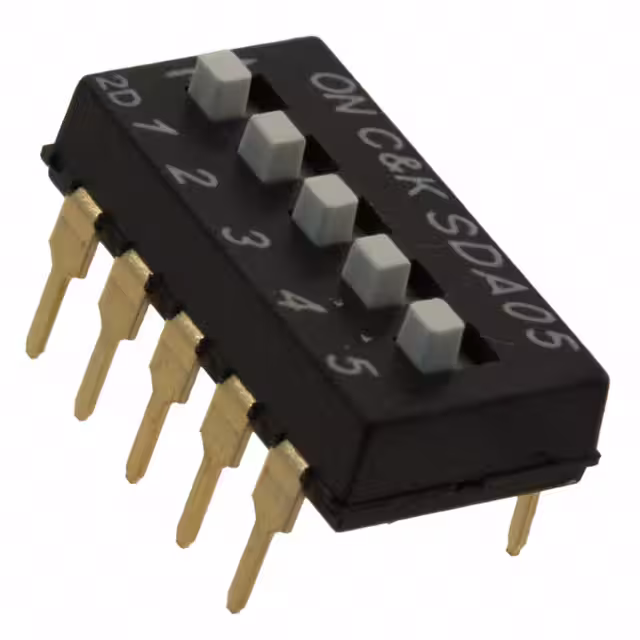

SDA05H1BDDIP / ROTARY DIP |
300 |
|
Таблицы данных |
SDA | Bulk | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDA06H0SBRDIP / ROTARY DIP |
16,450 |
|
Таблицы данных |
SDA | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
A6S 0020RDIP SWITCH |
1,147 |
|
Таблицы данных |
A6S-H | - | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
A6D 0148BDIP SWITCH |
203 |
|
Таблицы данных |
A6D | Bulk | Active | - | - | 30mA | 30VDC | Slide (Standard) | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6SN0058RSWITCH SLIDE DIP SPST 0.025A 24V |
750 |
|
Таблицы данных |
A6S-H | Box | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
SDA06H0SBDIP / ROTARY DIP |
1,000 |
|
Таблицы данных |
SDA | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KF1001-04P-R0-GL-DFT-01BDIP SW, THT, 4POS, EXTRNDED |
20,000 |
|
Таблицы данных |
- | Tube | Active | SPST | - | 25mA | 24VDC | Standard | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
KF1027A-02P-LG-ON-01BDIP SW, LOW PROFILE THT, 2POS, E |
31,000 |
|
Таблицы данных |
- | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6S 0027FSWITCH SLIDE DIP 0.025A 24V |
2,915 |
|
Таблицы данных |
A6S-H | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
KF1027A-04P-LG-DFT-01BDIP SW, LOW PROFILE THT, 4POS, E |
6,000 |
|
Таблицы данных |
- | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDA04H0SBDIP / ROTARY DIP |
265 |
|
Таблицы данных |
SDA | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KF1001-06P-R0-GL-DFT-01BDIP SW, THT, 6POS, EXTRNDED |
17,000 |
|
Таблицы данных |
- | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
