Цифровые изоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Тип | Изолированное питание | Количество каналов | Входы - Сторона 1/Сторона 2 | Тип канала | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-0931-000EDGTL ISO 2500VRMS 2CH GP 8SOIC Broadcom Limited |
735 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
|
HCPL-0930-000EDGTL ISO 2500VRMS 2CH GP 8SOIC Broadcom Limited |
285 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
|
HCPL-0931-500EDGTL ISO 2500VRMS 2CH GP 8SOIC Broadcom Limited |
2,045 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
|
HCPL-0930-500EDGTL ISO 2500VRMS 2CH GP 8SOIC Broadcom Limited |
1,392 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SOIC |
|

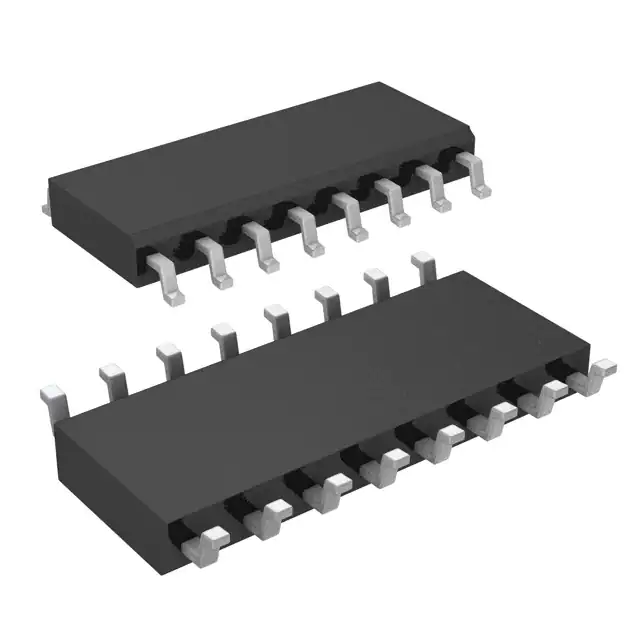

HCPL-090J-000EDGTL ISO 2500VRMS 4CH GP 16SOIC Broadcom Limited |
872 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-092J-000EDGTL ISO 2500VRMS 4CH GP 16SOIC Broadcom Limited |
717 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-091J-000EDGTL ISO 2500VRMS 4CH GP 16SOIC Broadcom Limited |
554 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|

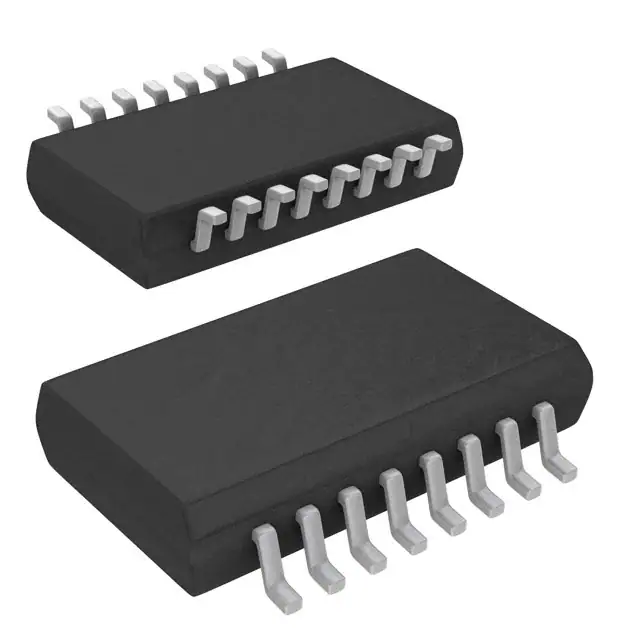

HCPL-902J-000EDGTL ISO 2500VRMS 4CH GP 16SO Broadcom Limited |
259 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-090J-500EDGTL ISO 2500VRMS 4CH GP 16SOIC Broadcom Limited |
3,032 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
HCPL-091J-500EDGTL ISO 2500VRMS 4CH GP 16SOIC Broadcom Limited |
2,045 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
