Цифровые изоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Тип | Изолированное питание | Количество каналов | Входы - Сторона 1/Сторона 2 | Тип канала | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

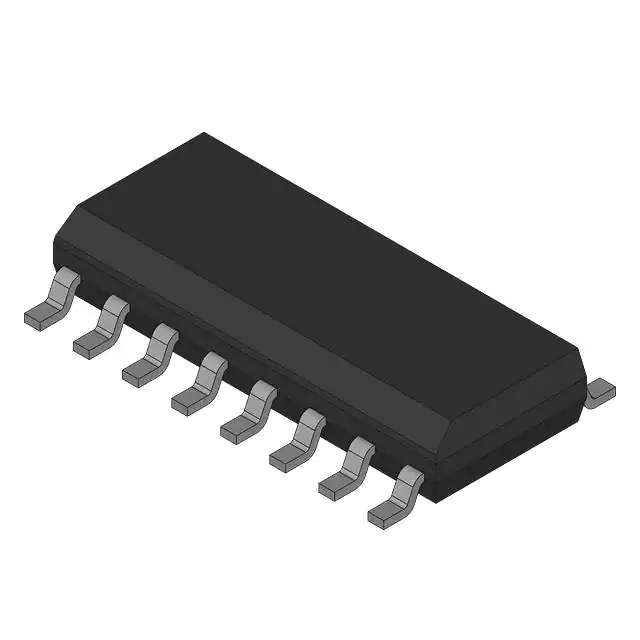

ADUM1300WTRWZ55DGTL ISO 2500VRMS 3CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 32ns, 32ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1301WSRWZ35DGTL ISO 2500VRMS 3CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1301WTRWZ33DGTL ISO 2500VRMS 3CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 32ns, 32ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1301WTRWZ35DGTL ISO 2500VRMS 3CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 32ns, 32ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1301WTRWZ53IC DGTL ISO 3CH LOGIC 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 32ns, 32ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1400WSRWZ33DGTL ISO 2500VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1400WSRWZ35DGTL ISO 2500VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1400WSRWZ53DGTL ISO 2500VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
ADUM1400WSRWZ55DGTL ISO 2500VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM1400WTRWZ33DGTL ISO 2500VRMS 4CH GP 16SOIC Analog Devices Inc. |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 32ns, 32ns | 3ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
