Круговые кабельные сборки
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | 1-й тип разъема | 1-й пол разъема | 1-й разъем Количество позиций | 1-й разъем Количество загруженных позиций | 1-й разъем Размер оболочки 1-го разъема - Вставка | 1-й разъем Ориентация | 1-й тип крепления разъема | 2-й тип разъема | 2-й пол разъема | 2-й разъем Количество позиций | 2-й разъем Количество загруженных позиций | 2-й разъем Размер оболочки 2-го разъема - Вставка | Ориентация 2-го разъема | Тип крепления 2-го разъема | Длина | Конфигурация сборки | Тип кабеля | Материал кабеля | Экранирование | Защита от проникновения | Использование |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21348400491015CIRC CBL 4POS RCPT TO WIRE 4.92' |
0 |
|
Таблицы данных |
M12 | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
MSBP-05BMMM-SL8B04CIR CBL 5POS RCPT TO WIRE 13.12' |
0 |
|
- |
M | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | B | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 13.12' (4.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP68 - Dust Tight, Waterproof; NMEA 2000 | Industrial Environments |
|
|
M12A-06BFFM-SR8B02CBL 6POS PLUG RA TO WIRE 6.56' |
0 |
|
- |
M | Bulk | Active | Plug, Right Angle | Female Sockets | 6 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
ACD-09BFFM-SL7A01CIRC CBL 9POS RCPT TO WIRE 3.28' |
0 |
|
- |
- | Bulk | Active | Receptacle | Female Sockets | 9 | All | C | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
ABD-03AFMM-SL7A03CIRC CBL 3POS RCPT TO WIRE 9.84' |
0 |
|
- |
- | Bulk | Active | Receptacle | Male Pins | 3 | All | B | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
MSAP03FL-SAPFL-SB003CIRC CBL 3POS PLUG TO PLUG 9.84' |
0 |
|
- |
M | Bulk | Active | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
MCP-05BMMM-SL8B02CIRC CBL 5POS RCPT TO WIRE 6.56' |
0 |
|
- |
MICRO | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP68 - Dust Tight, Waterproof; NMEA 2000 | Industrial Environments |
|
|
AAD-03BFFM-SL7A05CIRC CBL 3POS PLUG TO WIRE 1.64' |
0 |
|
- |
- | Bulk | Active | Plug | Female Sockets | 3 | All | A | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
AAD-03AFFM-SL7A05CIRC CBL 3POS RCPT TO WIRE 16.4' |
0 |
|
- |
- | Bulk | Active | Receptacle | Female Sockets | 3 | All | A | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
MSBP05FL-SBPFR-SB002CIRC CBL 5POS PLUG TO PLUG 6.56' |
0 |
|
- |
M | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | B | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | B | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
AU-08BFFM-QR8D01CBL 8POS PLUG RA TO WIRE 3.28' |
0 |
|
- |
X-Lok | Bulk | Active | Plug, Right Angle | Female Sockets | 8 | All | A | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
|
M12A05ML-12AML-SD003CIRC CBL 5POS RCPT TO RCPT 9.84' |
0 |
|
- |
M | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
BB-02AFMM-QL8D02CIRC CBL 2POS RCPT TO WIRE 6.56' |
0 |
|
- |
X-Lok | Bulk | Active | Receptacle | Male Pins | 2 | All | B | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
|
BB-04AFFM-LR7A01CBL 4POS RCPT RA TO WIRE 3.28' |
0 |
|
- |
- | Bulk | Active | Receptacle, Right Angle | Female Sockets | 4 | All | B | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
ABB-02BFMM-LL7A03CIRC CBL 2POS PLUG TO WIRE 9.84' |
0 |
|
- |
- | Bulk | Active | Plug | Female Sockets | 2 | All | B | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

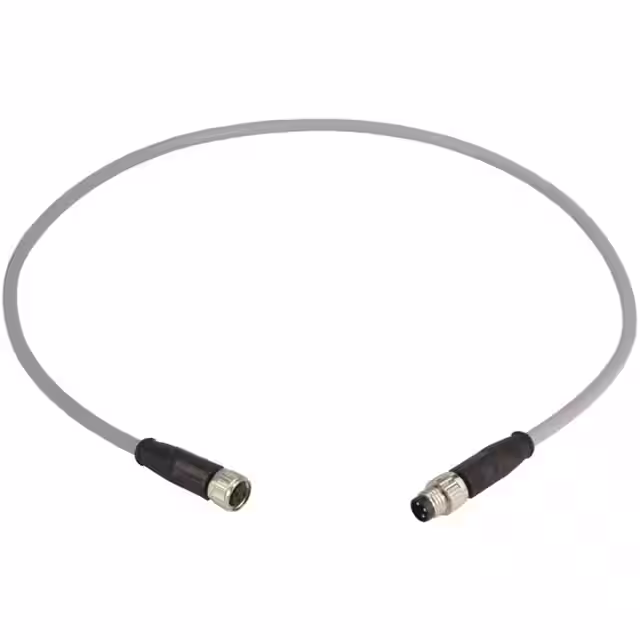

21348081380015CIRC CBL 3POS RCPT TO PLUG 4.92' |
0 |
|
Таблицы данных |
M8 | Bulk | Active | Receptacle | Male Pins | 3 | All | M8 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M8 | A | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

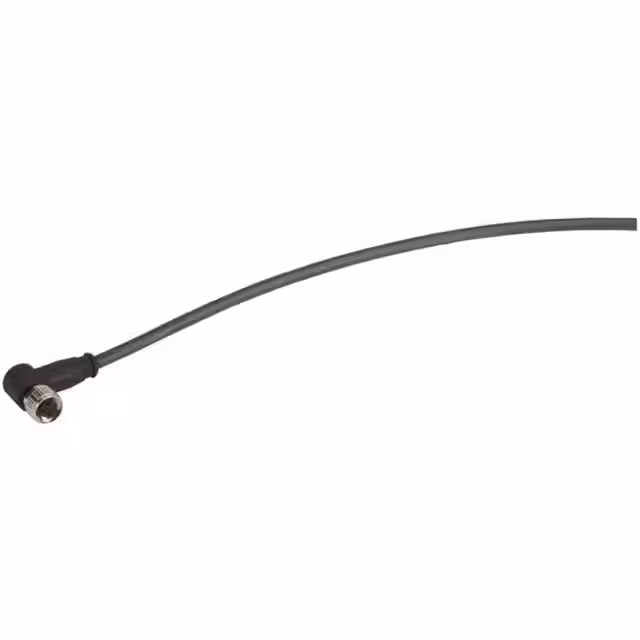

21025544302CBL 3POS PLUG RA TO WIRE 9.84' |
0 |
|
- |
M8 | Bulk | Obsolete | Plug, Right Angle | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
BB-02AFMM-QR8D02CBL 2POS RCPT RA TO WIRE 6.56' |
0 |
|
- |
X-Lok | Bulk | Active | Receptacle, Right Angle | Male Pins | 2 | All | B | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
|
MSAP03ML-SAPFR-SB005CBL 3POS RCPT TO PLUG RA 16.4' |
0 |
|
- |
M | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
MSAP03FL-SAPMR-SB005CBL 3POS RCPT TO PLUG RA 16.4' |
0 |
|
- |
M | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
