Круговые кабельные сборки
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | 1-й тип разъема | 1-й пол разъема | 1-й разъем Количество позиций | 1-й разъем Количество загруженных позиций | 1-й разъем Размер оболочки 1-го разъема - Вставка | 1-й разъем Ориентация | 1-й тип крепления разъема | 2-й тип разъема | 2-й пол разъема | 2-й разъем Количество позиций | 2-й разъем Количество загруженных позиций | 2-й разъем Размер оболочки 2-го разъема - Вставка | Ориентация 2-го разъема | Тип крепления 2-го разъема | Длина | Конфигурация сборки | Тип кабеля | Материал кабеля | Экранирование | Защита от проникновения | Использование |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CA0161A22601012CIRC CBL 7POS RCPT TO WIRE 3.28' |
1 |
|
Таблицы данных |
ecomate® C16 | Bulk | Active | Receptacle | Male Pins | 7 | All | - | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof; NMEA 2000 | Industrial Environments |
|
1416844CIRC CBL 6POS PLUG TO WIRE 6.56' |
2 |
|
Таблицы данных |
- | Bulk | Active | Plug | Female Sockets | 6 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
MRDAP08CBPA00CIRC CBL 8POS PLUG TO PLUG 3.28' |
2 |
|
Таблицы данных |
BrightConnX™ MRD | Box | Active | Plug | Male Pins | 8 | All | A | - | Free Hanging (In-Line) | Plug | Male Pins | 8 | All | A | - | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1693021CIRC CBL 3POS RCPT TO PLUG 16.4' |
5 |
|
Таблицы данных |
- | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1095954CBL 5POS RCPT RA TO WIRE 49.2' |
2 |
|
Таблицы данных |
SAC | Bulk | Active | Receptacle, Right Angle | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|

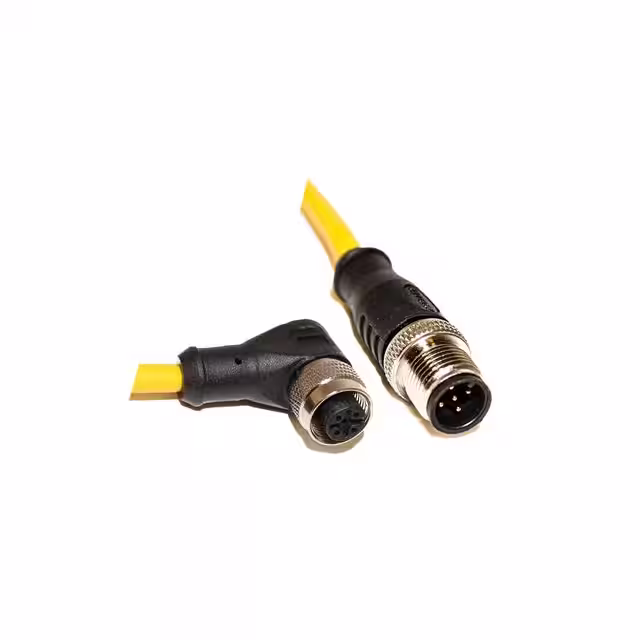

C5AD06M010CBL 5POS RCPT TO PLUG RA 32.8' |
0 |
|
Таблицы данных |
- | Bag | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | 32.8' (10.00m) | Standard | Round | - | Shielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
MQDC-406-GYPRACBL 4POS PLUG RA TO WIRE 6.56' |
4 |
|
Таблицы данных |
- | Bag | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
MQDC-406-GYNRACBL 4POS PLUG RA TO WIRE 6.56' |
0 |
|
Таблицы данных |
- | Bag | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
21349293477005CIRC CBL 4POS RCPT TO PLUG 1.64' |
1 |
|
Таблицы данных |
M12 | Bag | Active | Receptacle | Male Pins | 4 | All | M12 | D | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | D | Free Hanging (In-Line) | 1.64' (500.00mm) | Standard | Round | Polyurethane (PUR) | Shielded | IP67 - Dust Tight, Waterproof | Cat5, Industrial Environments |
|
|
MRDBM07CBPA00CIRC CBL 7POS PLUG TO PLUG 3.28' |
2 |
|
Таблицы данных |
BrightConnX™ MRD | Box | Active | Plug | Male Pins | 7 | All | B | - | Free Hanging (In-Line) | Plug | Male Pins | 7 | All | B | - | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1300610046CIRC CBL 3POS RCPT TO WIRE 6.56' |
1 |
|
Таблицы данных |
Brad Mini-Change 130061 | Bulk | Active | Receptacle | Male Pins | 3 | All | - | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
MN54PW02M010CIRC CBL 5POS RCPT TO WIRE 3.28' |
0 |
|
Таблицы данных |
miniBOSS™ M22 | Bag | Active | Receptacle | Female Sockets | 5 | All | 7/8" (M22) | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
MRDAP05CBPC00CIRC CBL 5POS PLUG TO PLUG 9.84' |
2 |
|
Таблицы данных |
BrightConnX™ MRD | Box | Active | Plug | Male Pins | 5 | All | A | - | Free Hanging (In-Line) | Plug | Male Pins | 5 | All | A | - | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1300060230CIRC CBL 3POS PLUG TO WIRE 1' |
0 |
|
Таблицы данных |
Brad Mini-Change 130006 | Bulk | Active | Plug | Female Sockets | 3 | All | 7/8" | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 10.00' (3.05m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
M12A12FL-12AFL-SB002CIR CBL 12POS PLUG TO PLUG 6.56' |
2 |
|
Таблицы данных |
M | Bag | Active | Plug | Female Sockets | 12 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 12 | All | M12 | A | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
MRDBM05CBPC00CIRC CBL 5POS PLUG TO PLUG 9.84' |
2 |
|
Таблицы данных |
BrightConnX™ MRD | Box | Active | Plug | Male Pins | 5 | All | B | - | Free Hanging (In-Line) | Plug | Male Pins | 5 | All | B | - | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1200670231CBL 5POS PLUG RA TO WIRE 16.4' |
0 |
|
Таблицы данных |
Brad Micro-Change 120067 | Bulk | Active | Plug, Right Angle | Female Sockets | 5 | 3 | M12 | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1425108CIRC CBL 3POS PLUG TO WIRE 49.2' |
1 |
|
Таблицы данных |
- | Bulk | Active | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
21349400405010CBL 4POS RCPT RA TO WIRE 3.28' |
0 |
|
Таблицы данных |
M12 | Bag | Active | Receptacle, Right Angle | Male Pins | 4 | All | M12 | D | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Cat5, Industrial Environments |
|
9456501000CBL 5POS RCPT RA TO PLUG 32.8' |
4 |
|
Таблицы данных |
SAI | Bulk | Active | Receptacle, Right Angle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
