Конденсаторные сети, массивы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | Материал диэлектрика | Количество конденсаторов | Тип схемы | Температурный коэффициент | Номинальные значения | Тип крепления | Упаковка/корпус | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GHF459601ZA6NCAP ARRAY 600PF 50V SMD |
0 |
|
Таблицы данных |
GH | Bulk | Active | 600pF | -20%, +80% | 50 V | Ceramic | 6 | Isolated | Maxi+ | - | Surface Mount | Nonstandard SMD | - | 0.140" L x 0.040" W (3.56mm x 1.02mm) | 0.011" (0.28mm) |
|
CAP-35/5/440RCAP FILM 35UF/5UF 370-440V RND |
1 |
|
Таблицы данных |
HCK, Dual Motor Run | Box | Active | 5µF, 35µF | ±3% | 440 V | Polypropylene (PP) Film, Metallized | 2 | - | - | - | Chassis Mount | Radial, Can - QC Terminals | - | 4.410" L x 2.070" W (112.01mm x 52.58mm) | 2.070" (52.58mm) |
|
|
CAP-40/5/440RCAP FILM 40UF/5UF 370-440V RND |
3 |
|
Таблицы данных |
HCK, Dual Motor Run | Box | Active | 5µF, 40µF | ±3% | 440 V | Polypropylene (PP) Film, Metallized | 2 | - | - | - | Chassis Mount | Radial, Can - QC Terminals | - | 4.800" L x 2.070" W (121.92mm x 52.58mm) | 2.070" (52.58mm) |
|
CAP-50/7.5/440CAP FILM 50UF/7.5UF 370-440V OVL |
0 |
|
Таблицы данных |
HCK, Dual Motor Run | Box | Active | 7.5µF, 50µF | ±3% | 440 V | Polypropylene (PP) Film, Metallized | 2 | - | - | - | Chassis Mount | Radial, Can - QC Terminals | - | 2.400" L x 2.600" W (60.96mm x 66.04mm) | 3.800" (96.52mm) |
|
|
CAP-50/5/440RCAP FILM 50UF/5UF 370-440V RND |
5 |
|
Таблицы данных |
HCK, Dual Motor Run | Box | Discontinued at Digi-Key | 5µF, 50µF | ±3% | 440 V | Polypropylene (PP) Film, Metallized | 2 | - | - | - | Chassis Mount | Radial, Can - QC Terminals | - | 4.410" L x 2.460" W (112.01mm x 62.48mm) | 2.460" (62.48mm) |
|
|
CAP-55/7.5/440RCAP FILM 55UF/7.5UF 370-440V RND |
0 |
|
Таблицы данных |
HCK, Dual Motor Run | Box | Active | 7.5µF, 55µF | ±3% | 440 V | Polypropylene (PP) Film, Metallized | 2 | - | - | - | Chassis Mount | Radial, Can - QC Terminals | - | 4.410" L x 2.460" W (112.01mm x 62.48mm) | 2.460" (62.48mm) |
|
|
CAP-45/7.5/440RCAP FILM 45UF/7.5UF 370-440V RND |
4 |
|
Таблицы данных |
HCK, Dual Motor Run | Box | Active | 7.5µF, 45µF | ±3% | 440 V | Polypropylene (PP) Film, Metallized | 2 | - | - | - | Chassis Mount | Radial, Can - QC Terminals | - | 4.410" L x 2.460" W (112.01mm x 62.48mm) | 2.460" (62.48mm) |
|

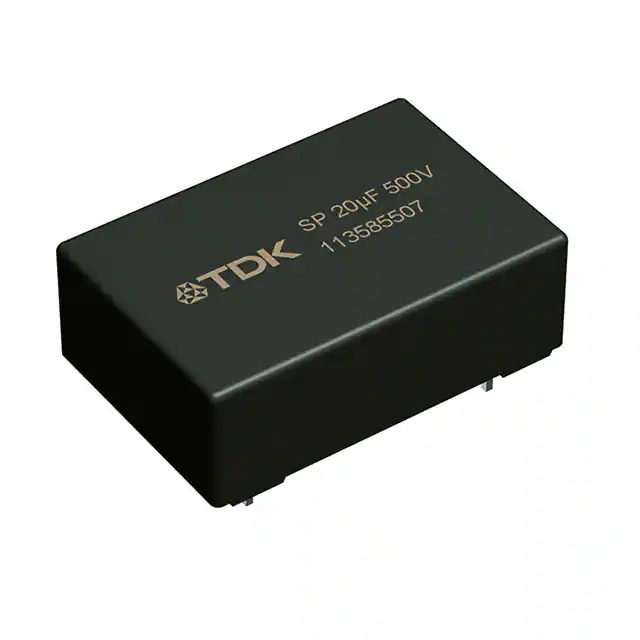

B58033I5206M001CAP CER 20UF 500V 6-DIP |
0 |
|
Таблицы данных |
CeraLink™ SP | Tube | Obsolete | 20µF | ±20% | 500 V | Ceramic | 2 | Isolated | - | AEC-Q200 | Through Hole | 6-DIP | - | 1.299" L x 0.866" W (33.00mm x 22.00mm) | 0.472" (12.00mm) |
|
B58033I9505M001CAP CER 5UF 900V 6-DIP |
0 |
|
Таблицы данных |
CeraLink™ SP | Tube | Obsolete | 5µF | ±20% | 900 V | Ceramic | 2 | Isolated | - | AEC-Q200 | Through Hole | 6-DIP | - | 1.299" L x 0.866" W (33.00mm x 22.00mm) | 0.472" (12.00mm) |
|
|
B58033I7106M001CAP CER 10UF 700V 6-DIP |
0 |
|
Таблицы данных |
CeraLink™ SP | Tube | Obsolete | 10µF | ±20% | 700 V | Ceramic | 2 | Isolated | - | AEC-Q200 | Through Hole | 6-DIP | - | 1.299" L x 0.866" W (33.00mm x 22.00mm) | 0.472" (12.00mm) |
|

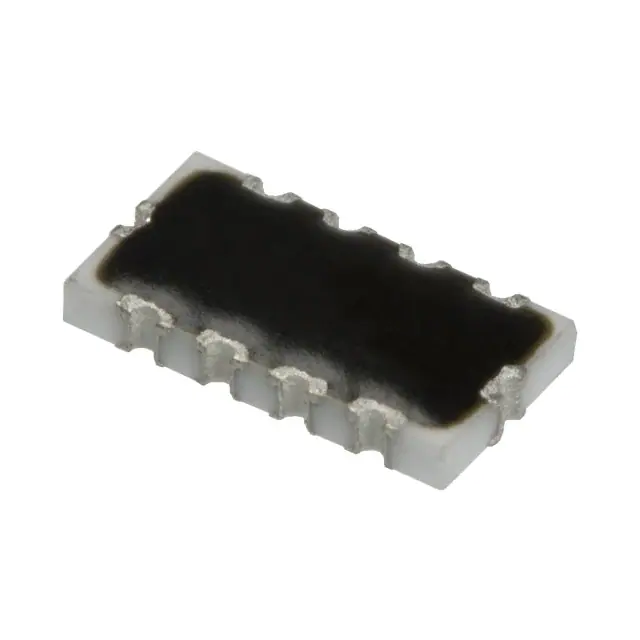

EZA-SCE220MCAP FEEDTHRU 22PF 25V 1608 |
0 |
|
Таблицы данных |
EZA-SC | Tape & Reel (TR) | Obsolete | 22pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1608 (4021 Metric) | - | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.033" (0.85mm) |
|
|
EZA-SCE470MCAP FEEDTHRU 47PF 25V 1608 |
0 |
|
Таблицы данных |
EZA-SC | Tape & Reel (TR) | Obsolete | 47pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1608 (4021 Metric) | - | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.033" (0.85mm) |
|

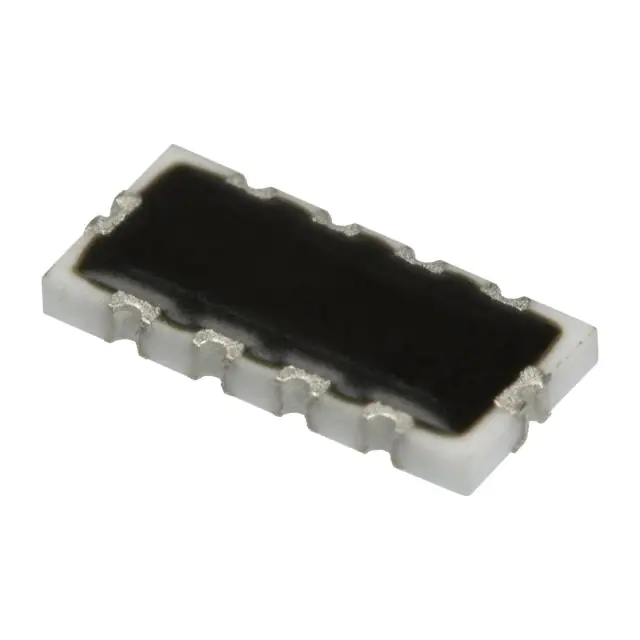

EZA-NPE470MCAP ARRAY 47PF 25V E 2512 |
0 |
|
Таблицы данных |
EZA-NP | Tape & Reel (TR) | Obsolete | 47pF | ±20% | 25 V | Ceramic | 8 | Bussed | E | - | Surface Mount | 2512 (6431 Metric) | - | 0.252" L x 0.122" W (6.40mm x 3.10mm) | 0.030" (0.75mm) |
|
|
EZA-NPE101MCAP ARRAY 100PF 25V E 2512 |
0 |
|
Таблицы данных |
EZA-NP | Tape & Reel (TR) | Obsolete | 100pF | ±20% | 25 V | Ceramic | 8 | Bussed | E | - | Surface Mount | 2512 (6431 Metric) | - | 0.252" L x 0.122" W (6.40mm x 3.10mm) | 0.037" (0.95mm) |
|
|
EZA-NPE221MCAP ARRAY 220PF 25V E 2512 |
0 |
|
Таблицы данных |
EZA-NP | Tape & Reel (TR) | Obsolete | 220pF | ±20% | 25 V | Ceramic | 8 | Bussed | E | - | Surface Mount | 2512 (6431 Metric) | - | 0.252" L x 0.122" W (6.40mm x 3.10mm) | 0.030" (0.75mm) |
|
|
EZA-SCE101MCAP FEEDTHRU 100PF 25V 1608 |
0 |
|
Таблицы данных |
EZA-SC | Tape & Reel (TR) | Obsolete | 100pF | ±20% | 25 V | - | 4 | Bussed | - | - | Surface Mount | 1608 (4021 Metric) | - | 0.157" L x 0.083" W (4.00mm x 2.10mm) | 0.033" (0.85mm) |
|
ECJ-RVC1H120KCAP ARRAY 12PF 50V NP0 1206 |
0 |
|
Таблицы данных |
ECJ-R | Tape & Reel (TR) | Obsolete | 12pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
ECJ-RVC1H150KCAP ARRAY 15PF 50V NP0 1206 |
0 |
|
Таблицы данных |
ECJ-R | Tape & Reel (TR) | Obsolete | 15pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
ECJ-RVC1H180KCAP ARRAY 18PF 50V NP0 1206 |
0 |
|
Таблицы данных |
ECJ-R | Tape & Reel (TR) | Obsolete | 18pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
ECJ-RVC1H220KCAP ARRAY 22PF 50V NP0 1206 |
0 |
|
Таблицы данных |
ECJ-R | Tape & Reel (TR) | Obsolete | 22pF | ±10% | 50 V | Ceramic | 4 | Isolated | C0G, NP0 | - | Surface Mount | 1206 (3216 Metric) | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
