Одиночные, предварительно смещенные биполярные транзисторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип транзистора | Ток - Коллектор (Ic) (Макс.) | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Резистор - База (R1) | Резистор - Эмиттер База (R2) | Усиление постоянного тока (hFE) (Мин.) @ Ic, Vce | Насыщение Vce (Макс.) @ Ib, Ic | Ток - Коллектор Отсечка (Макс.) | Частота - Переход | Мощность - макс. | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMBTRC103SS-AQBIASED BJT SOT-23 NPN 22000OHM Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 22 kOhms | 22 kOhms | 70 @ 10mA, 5V | - | 500nA | 200 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
MMBTRC102SS-AQBIASED BJT SOT-23 NPN 10000OHM Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 10 kOhms | 10 kOhms | 50 @ 10mA, 5V | - | 500nA | 200 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|

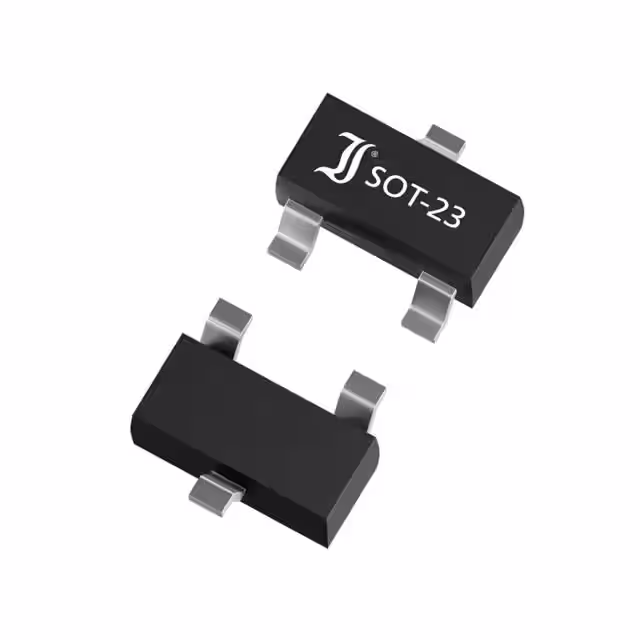

MMBTRC101SS-AQBIASED BJT SOT-23 NPN 4700OHM Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 30 @ 10mA, 5V | 300mV @ 500µA, 10mA | 500nA | 200 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
MMBTRA106SS-AQBIASED BJT SOT-23 PNP 4700OHM Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | PNP - Pre-Biased | 100 mA | - | 4.7 kOhms | 47 kOhms | 80 @ 10mA, 5V | - | 500nA | 200 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
MMBTRC104SS-AQBIASED BJT SOT-23 NPN 47000OHM Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 100 mA | - | 47 kOhms | 47 kOhms | 80 @ 10mA, 5V | 300mV @ 500µA, 10mA | 500nA | 200 MHz | 200 mW | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|

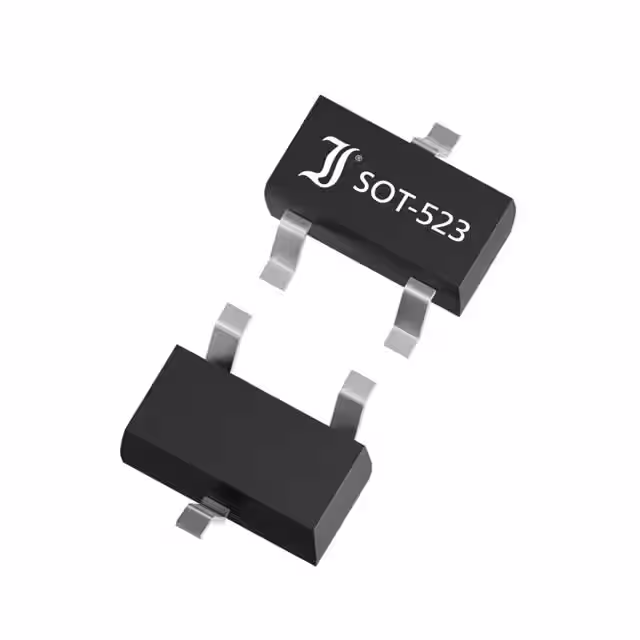

MMDTC124EE-AQBIASED BJT SOT-523 NPN 22000OHM Diotec Semiconductor |
0 |
|
Таблицы данных |
- | SOT-523 | Bulk | Active | NPN - Pre-Biased | 30 mA | 50 V | 22 kOhms | 22 kOhms | 56 @ 5mA, 5V | - | 500nA (ICBO) | 250 MHz | 150 mW | Automotive | AEC-Q101 | Surface Mount | SOT-523 |
|
|
MMBTRA226SBIASED BJT SOT-23 PNP 2200OHM Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | PNP - Pre-Biased | 800 mA | - | 2.2 kOhms | 10 kOhms | 56 @ 50mA, 5V | - | 10µA | 200 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
MMDTD141BIASED BJT SOT-23 NPN 10000OHM Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | NPN - Pre-Biased | 500 mA | 50 V | 10 kOhms | 10 kOhms | 56 @ 50mA, 5V | 300mV @ 2.5mA, 50mA | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
MMBTRC104SSTRANS PREBIAS NPN 50V SOT23-3 Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Pre-Biased | 100 mA | 50 V | 47 kOhms | 47 kOhms | 80 @ 10mA, 5V | - | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
MMBTRA103SSTRANS PREBIAS PNP SOT23-3 Diotec Semiconductor |
0 |
|
Таблицы данных |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP - Pre-Biased | 100 mA | - | 22 kOhms | 22 kOhms | 70 @ 10mA, 5V | - | 500nA | 200 MHz | 200 mW | - | - | Surface Mount | SOT-23-3 (TO-236) |
