Одиночные, предварительно смещенные биполярные транзисторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип транзистора | Ток - Коллектор (Ic) (Макс.) | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Резистор - База (R1) | Резистор - Эмиттер База (R2) | Усиление постоянного тока (hFE) (Мин.) @ Ic, Vce | Насыщение Vce (Макс.) @ Ib, Ic | Ток - Коллектор Отсечка (Макс.) | Частота - Переход | Мощность - макс. | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

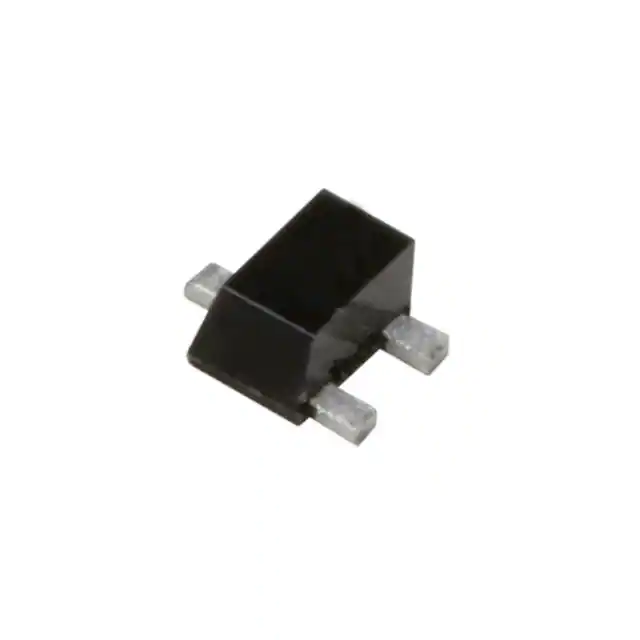

PDTA143EEF,115TRANS PREBIAS PNP 50V 0.1A SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 30 @ 10mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 250 mW | - | - | Surface Mount | SC-89 |
|
|
PDTA143ZEF,115TRANS PREBIAS PNP 50V 0.1A SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 47 kOhms | 100 @ 10mA, 5V | 100mV @ 250µA, 5mA | 1µA | - | 250 mW | - | - | Surface Mount | SC-89 |
|
|
PDTC114TEF,115TRANS PREBIAS NPN 50V 0.1A SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 10 kOhms | - | 200 @ 1mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 150 mW | - | - | Surface Mount | SC-89 |
|
|
PDTC114YEF,115TRANS PREBIAS NPN 50V 0.1A SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 10 kOhms | 47 kOhms | 100 @ 5mA, 5V | 100mV @ 250µA, 5mA | 1µA | - | 250 mW | - | - | Surface Mount | SC-89 |
|
|
PDTC115EEF,115TRANS PREBIAS NPN 50V SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 20 mA | 50 V | 100 kOhms | 100 kOhms | 80 @ 5mA, 5V | 150mV @ 250µA, 5mA | 1µA | - | 250 mW | - | - | Surface Mount | SC-89 |
|
|
PDTC123EEF,115TRANS PREBIAS NPN 50V 0.1A SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 2.2 kOhms | 2.2 kOhms | 30 @ 20mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 250 mW | - | - | Surface Mount | SC-89 |
|
|
PDTC143EEF,115TRANS PREBIAS NPN 50V 0.1A SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 30 @ 10mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 250 mW | - | - | Surface Mount | SC-89 |
|
|
PDTC143XEF,115TRANS PREBIAS NPN 50V 0.1A SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 10 kOhms | 50 @ 10mA, 5V | 100mV @ 500µA, 10mA | 1µA | - | 250 mW | - | - | Surface Mount | SC-89 |
|
|
PDTC143ZEF,115TRANS PREBIAS NPN 50V 0.1A SC89 |
0 |
|
Таблицы данных |
- | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 47 kOhms | 100 @ 10mA, 5V | 100mV @ 250µA, 5mA | 1µA | - | 250 mW | - | - | Surface Mount | SC-89 |
|
UNR31A900LTRANS PREBIAS PNP 50V SSSMINI3 |
0 |
|
Таблицы данных |
- | SOT-723 | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 80 mA | 50 V | 1 kOhms | 10 kOhms | 30 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 80 MHz | 100 mW | - | - | Surface Mount | SSSMini3-F1 |
|
|
UNR32A700LTRANS PREBIAS NPN 50V SSSMINI3 |
0 |
|
Таблицы данных |
- | SOT-723 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 80 mA | 50 V | 22 kOhms | - | 160 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 100 mW | - | - | Surface Mount | SSSMini3-F1 |
|

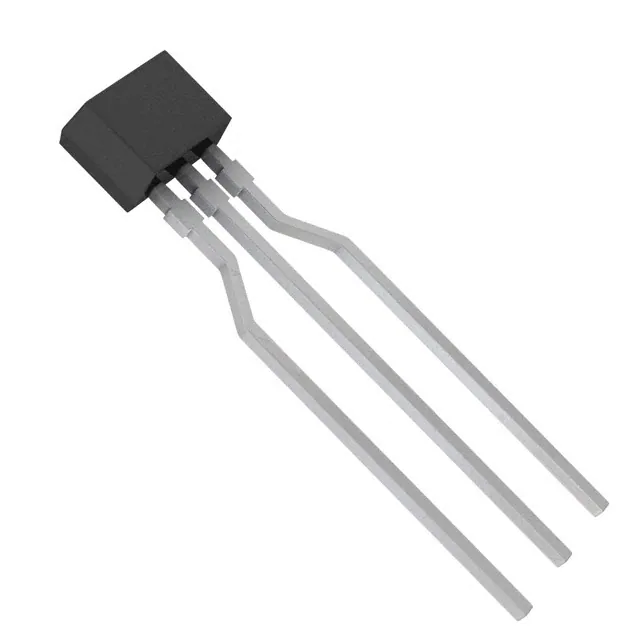

UNR421100ATRANS PREBIAS NPN 50V NS-B1 |
0 |
|
Таблицы данных |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 10 kOhms | 10 kOhms | 35 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
|
UNR421900ATRANS PREBIAS NPN 50V NS-B1 |
0 |
|
Таблицы данных |
- | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 1 kOhms | 10 kOhms | 30 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 150 MHz | 300 mW | - | - | Through Hole | NS-B1 |
|
XP0NG8A00LTRANS PREBIAS PNP 50V SMINI6 |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased + Diode | 100 mA | 50 V | 4.7 kOhms | 4.7 kOhms | 20 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | 80 MHz | 150 mW | - | - | Surface Mount | SMINI6-G1 |
|
PDTA114TE,115TRANS PREBIAS PNP 50V 0.1A SC75 |
0 |
|
Таблицы данных |
- | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | PNP - Pre-Biased | 100 mA | 50 V | 10 kOhms | - | 200 @ 1mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 150 mW | - | - | Surface Mount | SC-75 |
SOT416.jpg)
|
PDTC143XE,115TRANS PREBIAS NPN 50V 0.1A SC75 |
0 |
|
Таблицы данных |
- | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 10 kOhms | 50 @ 10mA, 5V | 100mV @ 500µA, 10mA | 1µA | - | 150 mW | - | - | Surface Mount | SC-75 |
|
FJN3305RTATRANS PREBIAS NPN 50V TO92-3 |
0 |
|
Таблицы данных |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 10 kOhms | 30 @ 5mA, 5V | 300mV @ 500µA, 10mA | 100nA (ICBO) | 250 MHz | 300 mW | - | - | Through Hole | TO-92-3 |
|
FJN3303RTATRANS PREBIAS NPN 50V TO92-3 |
0 |
|
Таблицы данных |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 22 kOhms | 22 kOhms | 56 @ 5mA, 5V | 300mV @ 500µA, 10mA | 100nA (ICBO) | 250 MHz | 300 mW | - | - | Through Hole | TO-92-3 |
|
FJN3314RTATRANS PREBIAS NPN 50V TO92-3 |
0 |
|
Таблицы данных |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | NPN - Pre-Biased | 100 mA | 50 V | 4.7 kOhms | 47 kOhms | 68 @ 5mA, 5V | 300mV @ 500µA, 10mA | 100nA (ICBO) | 250 MHz | 300 mW | - | - | Through Hole | TO-92-3 |
|
|
FJN4309RTATRANS PREBIAS PNP 40V TO92-3 |
0 |
|
Таблицы данных |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | PNP - Pre-Biased | 100 mA | 40 V | 4.7 kOhms | - | 100 @ 1mA, 5V | 300mV @ 1mA, 10mA | 100nA (ICBO) | 200 MHz | 300 mW | - | - | Through Hole | TO-92-3 |
