Биполярные транзисторные матрицы, предварительно смещенные
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип транзистора | Ток - Коллектор (Ic) (Макс.) | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Резистор - База (R1) | Резистор - Эмиттер База (R2) | Усиление постоянного тока (hFE) (Мин.) @ Ic, Vce | Насыщение Vce (Макс.) @ Ib, Ic | Ток - Коллектор Отсечка (Макс.) | Частота - Переход | Мощность - макс. | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BCR169SH6327XTSA1TRANS 2PNP PREBIAS 0.25W SOT363 |
0 |
|
Таблицы данных |
- | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 120 @ 5mA, 5V | 300mV @ 500µA, 10mA | - | 200MHz | 250mW | - | - | Surface Mount | PG-SOT363-PO |
|
|
BCR198SH6327XTSA1TRANS 2PNP PREBIAS 0.25W SOT363 |
0 |
|
Таблицы данных |
- | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 70 @ 5mA, 5V | 300mV @ 500µA, 10mA | - | 190MHz | 250mW | - | - | Surface Mount | PG-SOT363-PO |
|
|
BCR198SH6827XTSA1TRANS 2PNP PREBIAS 0.25W SOT363 |
0 |
|
Таблицы данных |
- | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 70 @ 5mA, 5V | 300mV @ 500µA, 10mA | - | 190MHz | 250mW | - | - | Surface Mount | PG-SOT363-PO |
|
FMG9AT248TRANS 2NPN PREBIAS 0.3W SMT5 |
0 |
|
Таблицы данных |

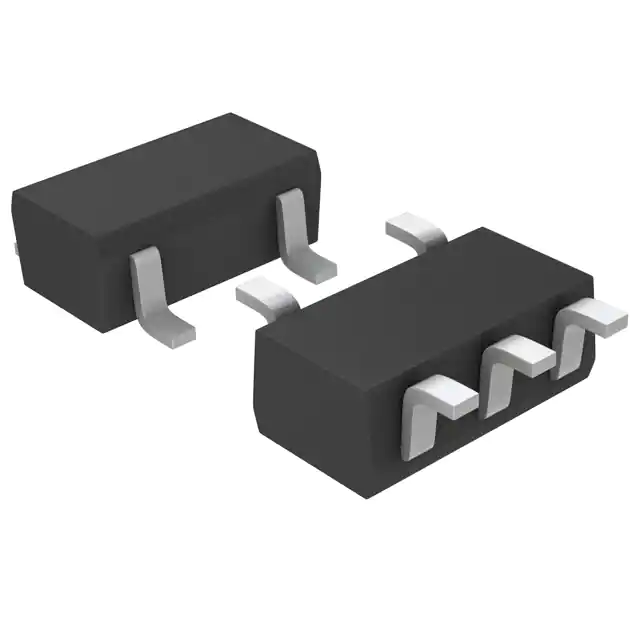

- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 30 @ 5mA, 5V | 300mV @ 500µA, 10mA | 500nA | 250MHz | 300mW | - | - | Surface Mount | SMT5 |
|
RN1961FE(TE85L,F)TRANS 2NPN PREBIAS 0.1W ES6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
|
RN1906FE(T5L,F,T)TRANS 2NPN PREBIAS 0.1W ES6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
|
RN2902FE(T5L,F,T)TRANS 2PNP PREBIAS 0.1W ES6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 100mW | - | - | Surface Mount | ES6 |
|
|
RN2969FE(TE85L,F)TRANS 2PNP PREBIAS 0.1W ES6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 100mW | - | - | Surface Mount | ES6 |
|
|
RN2971FE(TE85L,F)TRANS 2PNP PREBIAS 0.1W ES6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 100mW | - | - | Surface Mount | ES6 |
|
RN4908(T5L,F,T)TRANS NPN/PNP PREBIAS 0.2W US6 |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 200mW | - | - | Surface Mount | US6 |
|
|
RN4909(T5L,F,T)TRANS NPN/PNP PREBIAS 0.2W US6 |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 200mW | - | - | Surface Mount | US6 |
|
MBT3906DW1T2GTRANS 2PNP 40V 0.2A SC88 |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 200mA | - | - | - | - | - | - | 250MHz | 150mW | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
PUMD6/ZLFTRANS PREBIAS 1NPN 1PNP 6TSSOP |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 200 @ 1mA, 5V | 100mV @ 250µA, 5mA | 1µA | - | 300mW | - | - | Surface Mount | 6-TSSOP |
|
|
PUMD6/ZLXTRANS PREBIAS 1NPN 1PNP 6TSSOP |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 200 @ 1mA, 5V | 100mV @ 250µA, 5mA | 1µA | - | 300mW | - | - | Surface Mount | 6-TSSOP |
|
PUMB11/ZLFTRANS PREBIAS |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 30 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | 180MHz | 300mW | Automotive | AEC-Q101 | Surface Mount | 6-TSSOP |
|
|
PUMB11/ZLXTRANS PREBIAS |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 30 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | 180MHz | 300mW | Automotive | AEC-Q101 | Surface Mount | 6-TSSOP |
|
|
PUMB17/ZLXTRANS PREBIAS |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 60 @ 5mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | - | - | Surface Mount | 6-TSSOP |
|
|
PUMB2/ZLXPUMB2/ZLX |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PUMB9/ZLHTRANS PREBIAS |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 100 @ 5mA, 5V | 100mV @ 250µA, 5mA | 1µA | 180MHz | 300mW | Automotive | AEC-Q101 | Surface Mount | 6-TSSOP |
|
|
PUMB9/ZLXTRANS PREBIAS |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 100 @ 5mA, 5V | 100mV @ 250µA, 5mA | 1µA | 180MHz | 300mW | Automotive | AEC-Q101 | Surface Mount | 6-TSSOP |
