Биполярные транзисторные матрицы, предварительно смещенные
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип транзистора | Ток - Коллектор (Ic) (Макс.) | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Резистор - База (R1) | Резистор - Эмиттер База (R2) | Усиление постоянного тока (hFE) (Мин.) @ Ic, Vce | Насыщение Vce (Макс.) @ Ib, Ic | Ток - Коллектор Отсечка (Макс.) | Частота - Переход | Мощность - макс. | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBLS6024D,115TRANS PREBIAS 1NPN 1PNP 6TSOP |
0 |
|
Таблицы данных |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 1 NPN Pre-Biased, 1 PNP | 100mA, 1.5A | 50V, 65V | 22kOhms | 22kOhms | 60 @ 5mA, 5V / 140 @ 1A, 2V | 150mV @ 500µA, 10mA / 260mV @ 100mA, 1.5A | 1µA, 100nA | 150MHz | 760mW | - | - | Surface Mount | 6-TSOP |
|
EMF21T2RTRANS NPN PREBIAS/PNP 0.15W EMT6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 1 NPN Pre-Biased, 1 PNP | 100mA, 500mA | 50V, 12V | 10kOhms | 10kOhms | 30 @ 5mA, 5V / 270 @ 10mA, 2V | 300mV @ 500µA, 10mA / 250mV @ 10mA, 200mA | 500nA | 250MHz, 260MHz | 150mW | - | - | Surface Mount | EMT6 |
|
DMA964030RTRANS PREBIAS DUAL PNP SSMINI6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMA9640T0RTRANS PREBIAS DUAL PNP SSMINI6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMC964030RTRANS PREBIAS DUAL NPN SSMINI6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
DMC961010RTRANS PREBIAS DUAL NPN SSMINI5 |
0 |
|
Таблицы данных |

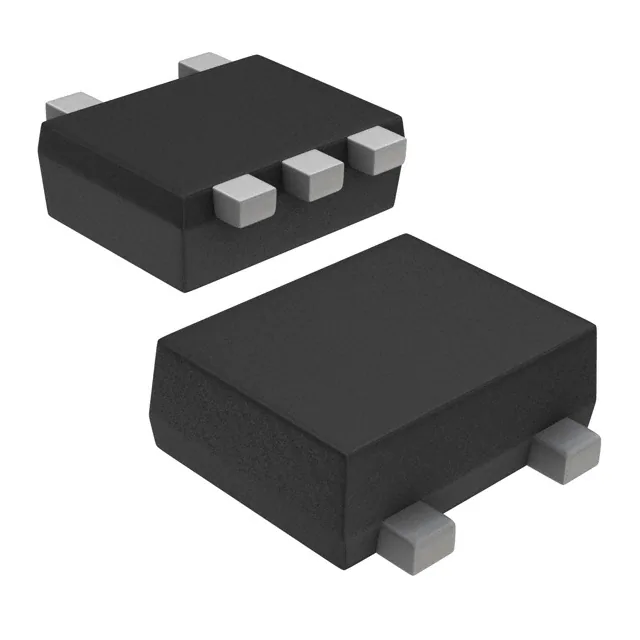

- | SOT-665 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 35 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini5-F4-B |
|
|
DMC961020RTRANS PREBIAS DUAL NPN SSMINI5 |
0 |
|
Таблицы данных |
- | SOT-665 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini5-F4-B |
|
|
DMG9640M0RTRANS PREBIAS NPN/PNP SSMINI6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMG963HD0RTRANS PREBIAS NPN/PNP SSMINI5 |
0 |
|
- |
- | SOT-665 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms, 22kOhms | 10kOhms, 47kOhms | 35 @ 5mA, 10V / 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini5-F4-B |
|
|
DMA964010RTRANS PREBIAS DUAL PNP SSMINI6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 35 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMA9640M0RTRANS PREBIAS DUAL PNP SSMINI6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMC964040RTRANS PREBIAS DUAL NPN SSMINI6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMC964010RTRANS PREBIAS DUAL NPN SSMINI6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 35 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMG964010RTRANS PREBIAS NPN/PNP SSMINI6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 35 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMC964050RTRANS PREBIAS DUAL NPN SSMINI6 |
0 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 160 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMG964020RTRANS PREBIAS NPN/PNP SSMINI6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMG964030RTRANS PREBIAS NPN/PNP SSMINI6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMG964040RTRANS PREBIAS NPN/PNP SSMINI6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMG964050RTRANS PREBIAS NPN/PNP SSMINI6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 160 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
|
|
DMG964060RTRANS PREBIAS NPN/PNP SSMINI6 |
0 |
|
- |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 160 @ 5mA, 10V | 250mV @ 500µA, 10mA | 500nA | - | 125mW | - | - | Surface Mount | SSMini6-F3-B |
