Биполярные транзисторные матрицы, предварительно смещенные
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип транзистора | Ток - Коллектор (Ic) (Макс.) | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Резистор - База (R1) | Резистор - Эмиттер База (R2) | Усиление постоянного тока (hFE) (Мин.) @ Ic, Vce | Насыщение Vce (Макс.) @ Ib, Ic | Ток - Коллектор Отсечка (Макс.) | Частота - Переход | Мощность - макс. | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN1905FE,LF(CTTRANS 2NPN PREBIAS 0.1W ES6 |
3,880 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
|
RN4983FE,LF(CTTRANS NPN/PNP PREBIAS 0.1W ES6 |
3,645 |
|
Таблицы данных |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | - | - | Surface Mount | ES6 |
|
RN4985,LF(CTTRANS NPN/PNP PREBIAS 0.2W US6 |
2,971 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100µA (ICBO) | 250MHz, 200MHz | 200mW | - | - | Surface Mount | US6 |
|
|
RN2906,LFTRANS 2PNP PREBIAS 0.2W US6 |
5,268 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | - | - | Surface Mount | US6 |
|
|
RN1905,LF(CTTRANS 2NPN PREBIAS 0.2W US6 |
3,981 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | - | - | Surface Mount | US6 |
|
RN1705,LFNPNX2 BRT Q1BSR2.2KOHM Q1BER47KO |
8,873 |
|
Таблицы данных |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | - | - | Surface Mount | USV |
|
|
RN1707,LFNPNX2 BRT Q1BSR10KOHM Q1BER47KOH |
8,441 |
|
Таблицы данных |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | - | - | Surface Mount | USV |
|
|
RN1701,LFNPNX2 BRT Q1BSR4.7KOHM Q1BER4.7K |
6,209 |
|
Таблицы данных |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | - | - | Surface Mount | USV |
|
PUMH15,115TRANS PREBIAS 2NPN 50V 6TSSOP |
1,523 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V | 150mV @ 500µA, 10mA | 1µA | - | 300mW | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|
DCX143TU-7-FTRANS PREBIAS NPN/PNP SOT363 |
94,950 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 100 @ 1mA, 5V | 300mV @ 250µA, 2.5mA | - | 250MHz | 200mW | - | - | Surface Mount | SOT-363 |
|
MUN5315DW1T1GTRANS PREBIAS 1NPN 1PNP 50V SC88 |
24,000 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 160 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 250mW | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
MUN5332DW1T1GTRANS PREBIAS 1NPN 1PNP 50V SC88 |
9,074 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 15 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 250mW | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
MUN5334DW1T1GTRANS PREBIAS NPN/PNP SOT363 |
8,177 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 250mW | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
MUN5116DW1T1GTRANS PREBIAS 2PNP 50V SC88 |
3,653 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 160 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 250mW | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
UMG5NTRTRANS 2NPN PREBIAS 0.15W UMT5 |
5,235 |
|
Таблицы данных |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 68 @ 5mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 150mW | - | - | Surface Mount | UMT5 |
|

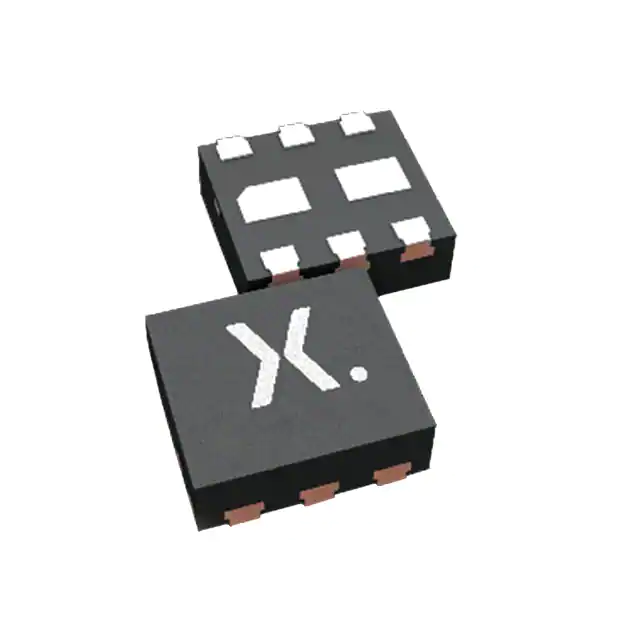

PRMH9ZTRANS PREBIAS 2NPN 50V DFN1412-6 |
0 |
|
Таблицы данных |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 100 @ 5mA, 5V | 100mV @ 250µA, 5mA | 1µA | 230MHz | 480mW | Automotive | AEC-Q101 | Surface Mount | DFN1412-6 |
|
|
NSVMUN5316DW1T1GTRANS PREBIAS 1NPN 1PNP 50V SC88 |
13,900 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 160 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 250mW | Automotive | AEC-Q101 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
NSVMUN5334DW1T1GTRANS PREBIAS 1NPN 1PNP 50V SC88 |
0 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 250mW | Automotive | AEC-Q101 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
SMUN5114DW1T1GTRANS 2PNP PREBIAS 0.187W SOT363 |
8,700 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 187mW | Automotive | AEC-Q101 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
NSVMUN5215DW1T1GTRANS PREBIAS 2NPN 50V SC88 |
8,510 |
|
Таблицы данных |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 160 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 250mW | Automotive | AEC-Q101 | Surface Mount | SC-88/SC70-6/SOT-363 |
