Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2H1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 50A 12V CIT Relay and Switch |
2,365 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2S1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
5,756 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

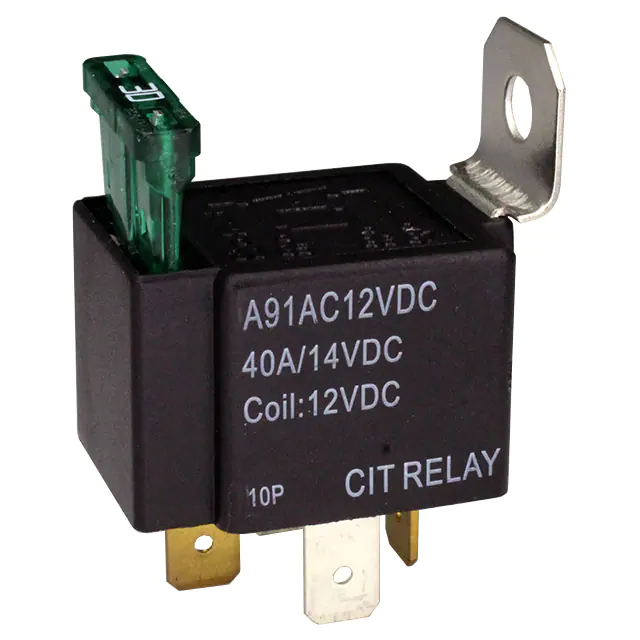

A91AC12VDCRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
3,430 |
|
Таблицы данных |
A9 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

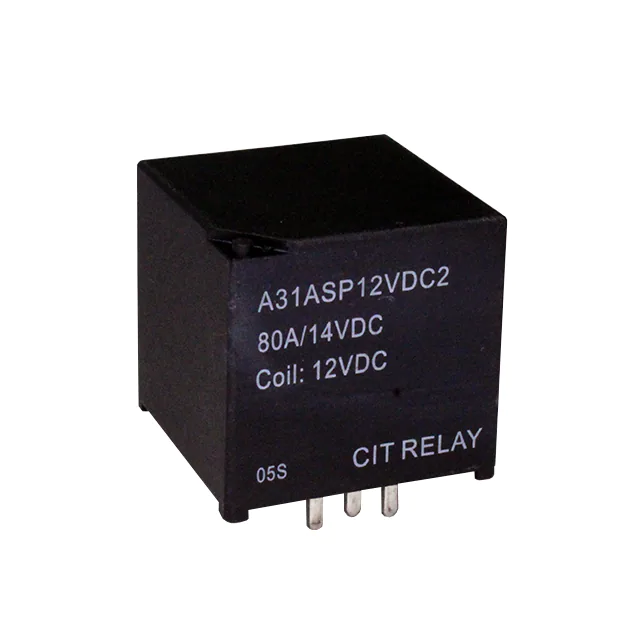

A31ASP12VDC2RELAY AUTOMOTIVE SPST 80A 12V CIT Relay and Switch |
911 |
|
Таблицы данных |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A3M1ASQ12VDC2DRELAY AUTOMOTIVE SPST 80A 12V CIT Relay and Switch |
1,359 |
|
Таблицы данных |
A3M | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A151CS12VDCRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
693 |
|
Таблицы данных |
A15 | Tube | Active | Non Latching | 57.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 20VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2F1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
246 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

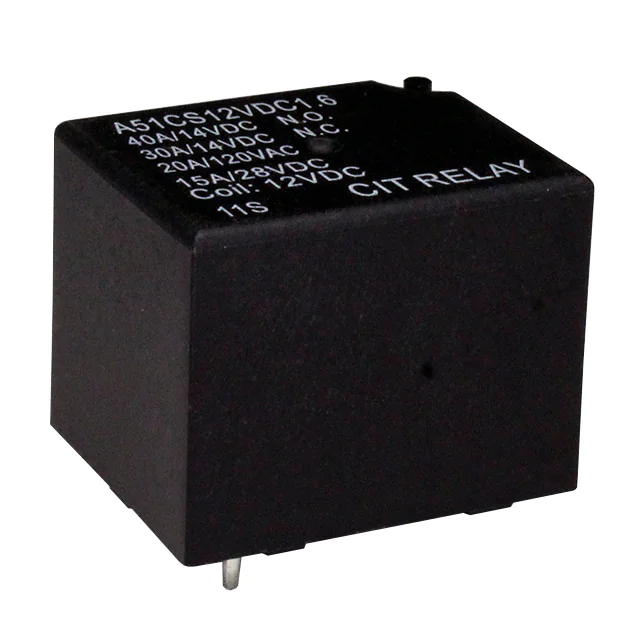

A51CS12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V CIT Relay and Switch |
780 |
|
Таблицы данных |
A5 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

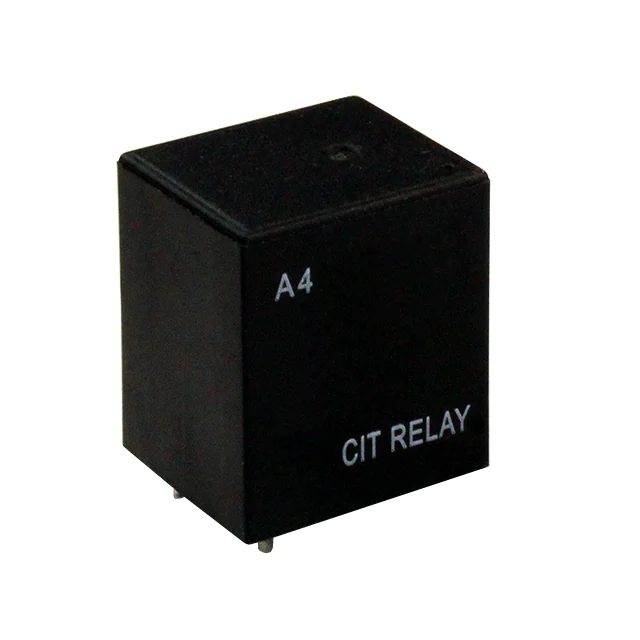

A41CS12VDCRELAY AUTOMOTIVE SPDT 20A 12V CIT Relay and Switch |
3,635 |
|
Таблицы данных |
A4 | Tube | Active | Non Latching | 82.8 mA | 12VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11ASQ12VDC1.2RRELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
4,166 |
|
Таблицы данных |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
