Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2F1CCQ12VDC1.9DRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1CCQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ9731-1C-24DC1RELAY AUTOMOTIVE SPDT 40A 24V |
0 |
|
Таблицы данных |
AZ9731 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 15.6 VDC | 3.6 VDC | 7 ms | 5 ms | Diode, MINI-ISO w/ Steel Mounting Bracket, Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9841-1A-24DRELAY AUTOMOTIVE SPST 40A 24V |
0 |
|
Таблицы данных |
AZ9841 | Box | Active | Non Latching | 55 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 14.4 VDC | 2.4 VDC | 5 ms | 2 ms | 280-ISO | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
A21CCQ24VDC1.9RELAY AUTOMOTIVE SPDT 40A 24V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21CCQ24VDC1.6RELAY AUTOMOTIVE SPDT 40A 24V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1CSQ12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1CCQ12VDC1.6RELAY AUTOMOTIVE SPDT 50A 12V |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21CSP12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2F1CCQ24VDC1.9RELAY AUTOMOTIVE SPDT 40A 24V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21CSQ12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1CCQ24VDC1.6RELAY AUTOMOTIVE SPDT 40A 24V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1A-C-12S-N-XRELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
Таблицы данных |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1ACQ12VDC1.9DRELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ971-1C-12DERELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Таблицы данных |
AZ971 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 150VDC - Max | 8.4 VDC | 0.7 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|

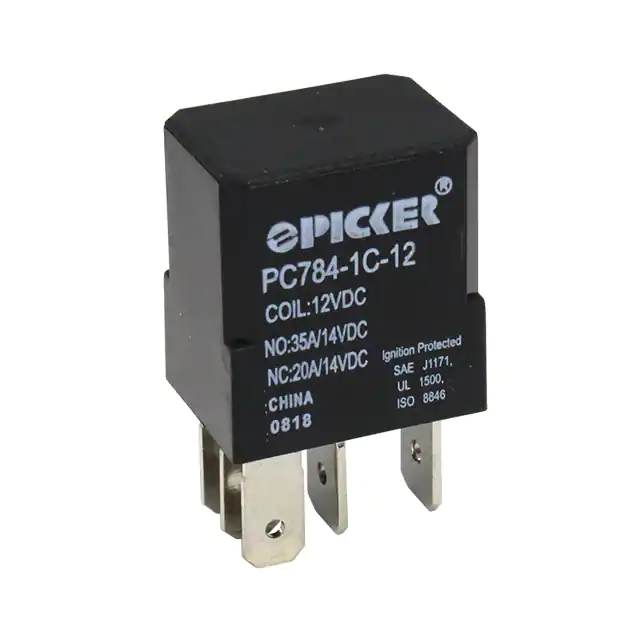

PC784-1C-12C-R-XRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Таблицы данных |
- | Tube | Active | Non Latching | 143 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -25°C ~ 125°C |
|
A2M1CCQ12VDC1.9RRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1CCQ12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
Таблицы данных |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HM1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Таблицы данных |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A61AC24VDC1.3RELAY AUTOMOTIVE SPST 30A 24V |
0 |
|
Таблицы данных |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
