БОМ
Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

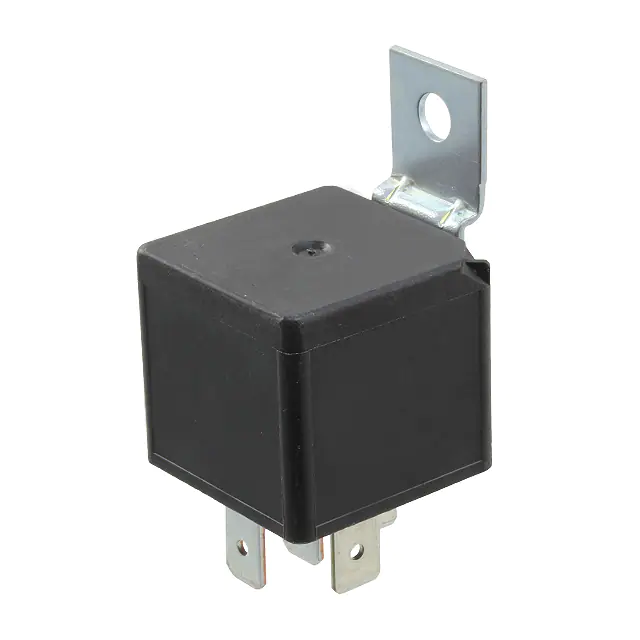

1-1393302-0RELAY GEN PURPOSE SPDT 40A 12V TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
VF4 | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
5-1414782-7RELAY AUTO SPST-NO 40A 12V TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
V23201 | Bulk | Discontinued at Digi-Key | Non Latching | 68 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
VFMA-11F41-S01VFMA-11F41-S01=VFMA TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
VFMA | Bulk | Obsolete | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | - | 7.2 VDC | 1.2 VDC | - | - | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
3-1393278-7RELAY AUTOMOTIVE SPDT 45A 24V TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
V23133 | Bulk | Obsolete | Non Latching | 66 mA | 24VDC | SPDT (1 Form C) | 45 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|

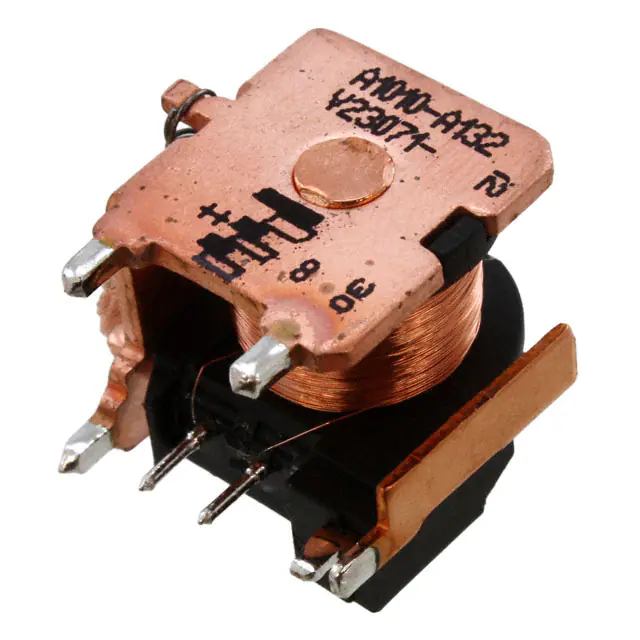

1393276-7RELAY AUTO SPST-NO 70A 24V TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
V23071 | Bulk | Obsolete | Non Latching | 103 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.1 VDC | 2.4 VDC | 4 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
1904001-5AUTOMOTIVE RELAYS TE Connectivity Potter & Brumfield Relays |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
6-1414920-0RELAY AUTO SPDT 30A 12V TE Connectivity Potter & Brumfield Relays |
0 |
|
Таблицы данных |
Micro Relay K | Bulk | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
1480422-1RELAY MINI RELE ALARME SONORO TE Connectivity Potter & Brumfield Relays |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4-1393306-7RELAY MINI VF711F11Z10/X863 TE Connectivity Potter & Brumfield Relays |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1393306-1RELAY MINI VF4M11F13Z06/X832 TE Connectivity Potter & Brumfield Relays |
0 |
|
- |
- | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
