Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6-1393292-3RELAY AUTOMOTIVE SPDT 30A 24V TE Connectivity AMP Connectors |
277 |
|
Таблицы данных |
Micro Relay A | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 30 A | 24VDC - Nom | 14.4 VDC | 3.6 VDC | - | - | Diode | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
9-1393303-7RELAY AUTOMOTIVE SPST-NO 70A 24V TE Connectivity AMP Connectors |
324 |
|
Таблицы данных |
F7 | Bulk | Active | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

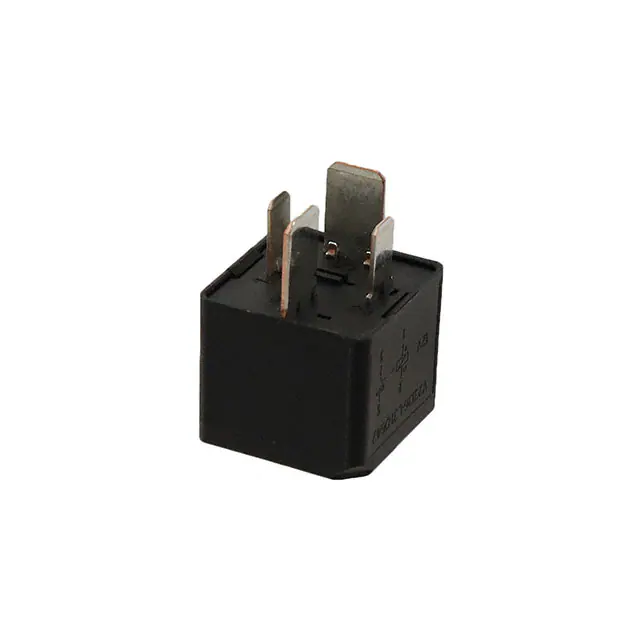

V23136-L0031-D642POWER FA V23136 TE Connectivity AMP Connectors |
663 |
|
Таблицы данных |
F7 A | Bulk | Active | Latching, Single Coil | 480 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Max | 6 VDC | - | 1 ms | 2 ms | IP54 - Dust Protected, Water Resistant | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

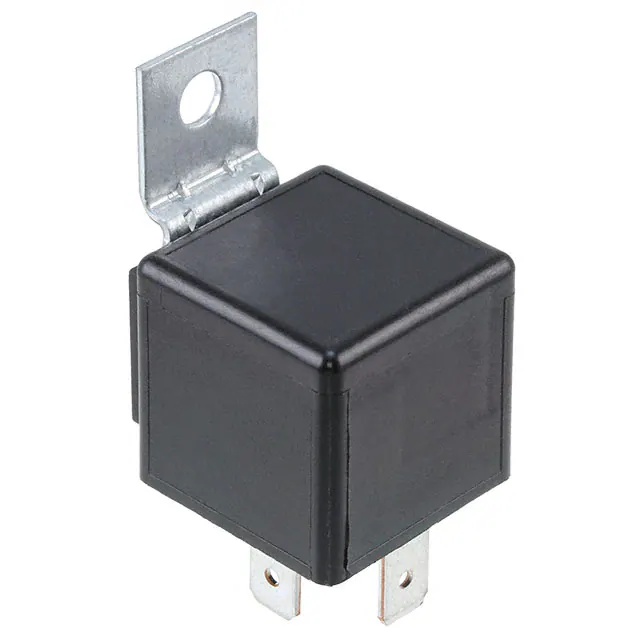

3-1393303-7RELAY AUTOMOTIVE SPST-NO 60A 24V TE Connectivity AMP Connectors |
3,203 |
|
Таблицы данных |
F4 | Bulk | Active | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 60 A | 24VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
5-1393302-1RELAY GEN PURPOSE SPDT 20A 24V TE Connectivity AMP Connectors |
1,099 |
|
Таблицы данных |
F4 | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
2-1393302-3RELAY AUTOMOTIVE SPDT 60A 12V TE Connectivity AMP Connectors |
288 |
|
Таблицы данных |
F4 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 60 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
3-1393303-4RELAY AUTOMOTIVE SPST-NO 60A 12V TE Connectivity AMP Connectors |
207 |
|
Таблицы данных |
F4 | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 60 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
1-1393277-7RELAY AUTOMOTIVE SPST 40A 12V TE Connectivity AMP Connectors |
156 |
|
Таблицы данных |
V23076 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
1393277-9RELAY AUTOMOTIVE SPDT 40A 24V TE Connectivity AMP Connectors |
495 |
|
Таблицы данных |
V23076 | Bulk | Active | Non Latching | 66 mA | 24VDC | SPDT (1 Form C) | 40 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

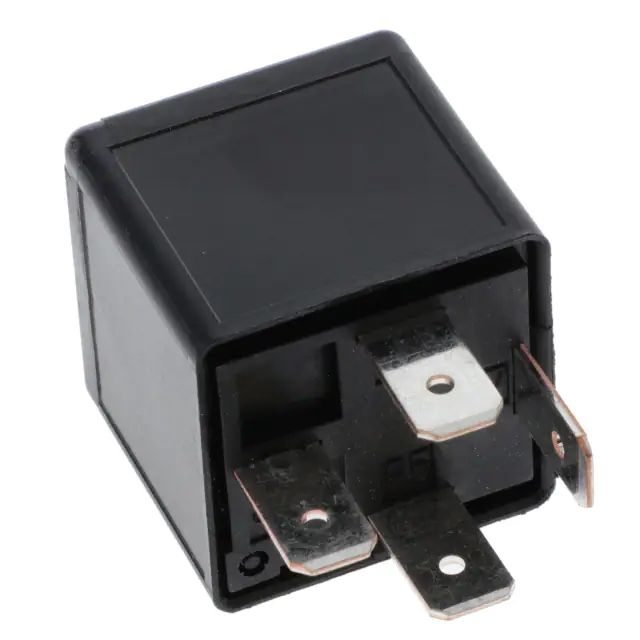

1393303-9RELAY GEN PURPOSE SPST 20A 24V TE Connectivity AMP Connectors |
103 |
|
Таблицы данных |
F4 | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
