Автомобильные реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ983-1C-24DERELAY AUTOMOTIVE SPDT 60A 24V American Zettler |
354 |
|
Таблицы данных |
AZ983 | Box | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ979-1C-24DERELAY AUTOMOTIVE SPDT 60A 24V American Zettler |
1,000 |
|
Таблицы данных |
AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

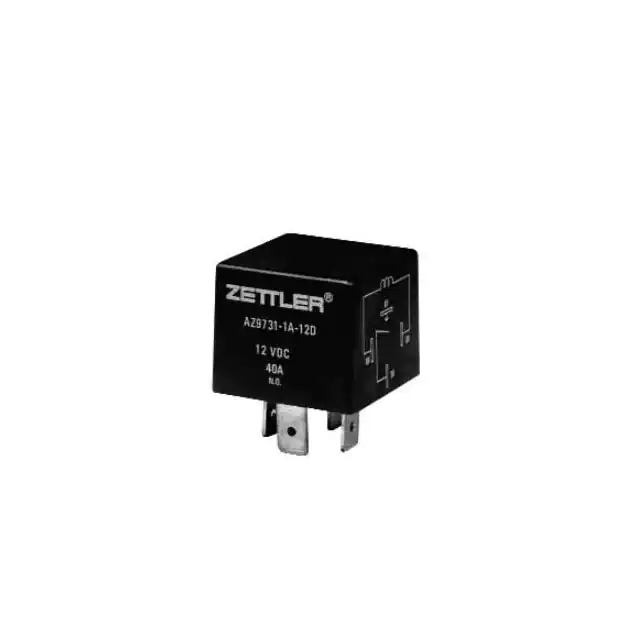

AZ9731-1A-12DC1R1RELAY AUTOMOTIVE SPST 40A 12V American Zettler |
58 |
|
Таблицы данных |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO w/ Steel Mounting Bracket, Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC1R1RELAY AUTOMOTIVE SPDT 30A 12V American Zettler |
14 |
|
Таблицы данных |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO w/ Steel Mounting Bracket, Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1A-12DC4RELAY AUTOMOTIVE SPST 40A 12V American Zettler |
0 |
|
Таблицы данных |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Shrouded w/ Steel Bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ9731-1A-12DC4R1RELAY AUTOMOTIVE SPST 40A 12V American Zettler |
18 |
|
Таблицы данных |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor, MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ947-1A-12DERELAY AUTOMOTIVE SPST 20A 12V American Zettler |
0 |
|
Таблицы данных |
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1C-12DERELAY AUTOMOTIVE SPDT 20A 12V American Zettler |
0 |
|
Таблицы данных |
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1A-24DRELAY AUTOMOTIVE SPST 20A 24V American Zettler |
0 |
|
Таблицы данных |
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1C-24DRELAY AUTOMOTIVE SPDT 20A 24V American Zettler |
0 |
|
Таблицы данных |
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
