БОМ
Настольные, настенные блоки питания переменного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI200G-18-UD2-P51AC/DC DESKTOP ADAPTER 18V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 18V | 11.1A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|

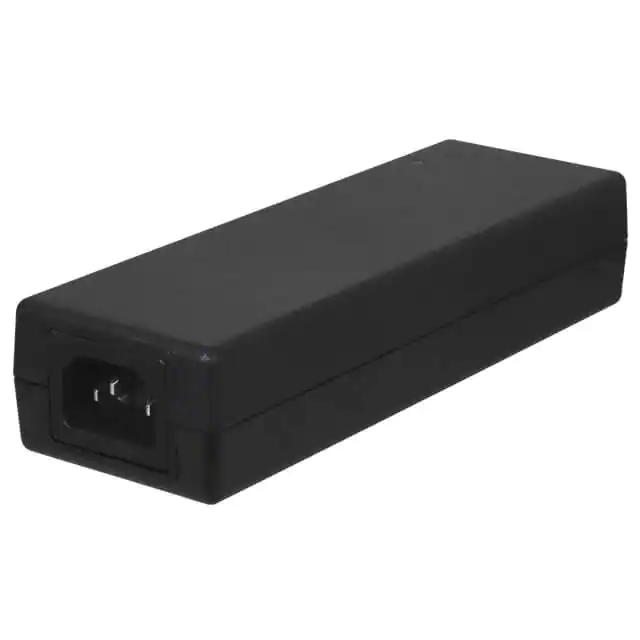

SDI200G-19-UC-P51AC/DC DESKTOP ADAPTER 19V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 19V | 10.5A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-48-UD-P51AC/DC DESKTOP ADAPTER 48V 202W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 48V | 4.2A | 202 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-18-UDC-P51AC/DC DESKTOP ADAPTER 18V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 18V | 11.1A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-19.5-U-P51AC/DC DESKTOP ADAPTER 19.5V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 19.5V | 10.2A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-20-UD-P51AC/DC DESKTOP ADAPTER 20V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 20V | 10A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-18-UD-P51AC/DC DESKTOP ADAPTER 18V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 11.1A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-48-UD2-P51AC/DC DESKTOP ADAPTER 48V 202W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 48V | 4.2A | 202 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-56-U2-P51AC/DC DESKTOP ADAPTER 56V 202W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 56V | 3.6A | 202 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-56-UD-P51AC/DC DESKTOP ADAPTER 56V 202W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 56V | 3.6A | 202 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-19-UD2-P51AC/DC DESKTOP ADAPTER 19V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 19V | 10.5A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-20-U2-P51AC/DC DESKTOP ADAPTER 20V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 20V | 10A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-19.5-UD2-P51AC/DC DESKTOP ADAPTER 19.5V 199W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 19.5V | 10.2A | 199 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-19.5-UDC-P51AC/DC DESKTOP ADAPTER 19.5V 199W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 19.5V | 10.2A | 199 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-12-UC-P51AC/DC DESKTOP ADAPTER 12V 192W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 16A | 192 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-12-U2-P51AC/DC DESKTOP ADAPTER 12V 192W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 16A | 192 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-48-UC-P51AC/DC DESKTOP ADAPTER 48V 202W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 48V | 4.2A | 202 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-18-U2-P51AC/DC DESKTOP ADAPTER 18V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 18V | 11.1A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-24-UDC-P51AC/DC DESKTOP ADAPTER 24V 199W |
0 |
|
Таблицы данных |
GaN, SDI200G-UD (200W) | Box | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 24V | 8.3A | 199 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-19.5-UC-P51AC/DC DESKTOP ADAPTER 19.5V 200W |
0 |
|
Таблицы данных |
GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 19.5V | 10.2A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
