БОМ
Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HWB015S-15-CAC/DC CONVERTER 15V 15W |
0 |
|
Таблицы данных |
HWB (15W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 15W | ITE (Commercial) | - | -10°C ~ 60°C | Load Sharing, Universal Input | Chassis Mount | 4.33" L x 3.62" W x 1.38" H (110.0mm x 92.0mm x 35.0mm) |
|
ECE60US03-SAC/DC CONVERTER 3.3V 33W |
0 |
|
Таблицы данных |
ECE60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | 33W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
|
ECS130US24-CSINGLE OP AC-DC CHASSIS-MOUNT PS |
0 |
|
Таблицы данных |
ECS (130W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.49" L x 2.52" W x 1.54" H (114.0mm x 64.0mm x 39.1mm) |
|
|
ECS130US15-CSINGLE OP AC-DC CHASSIS-MOUNT PS |
0 |
|
Таблицы данных |
ECS (130W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 8.7 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.49" L x 2.52" W x 1.54" H (114.0mm x 64.0mm x 39.1mm) |
|

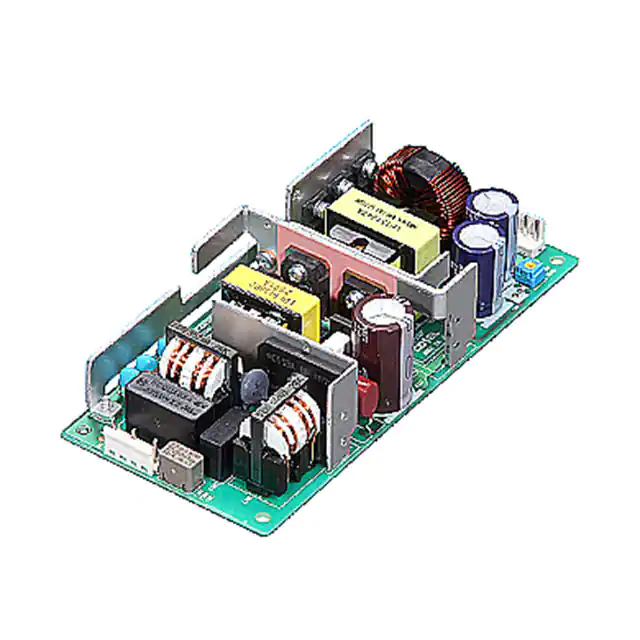

LFP150F-24-YAC/DC CONVERTER 24V 150W |
0 |
|
Таблицы данных |
LFP (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
|
|
LFP150F-24-J1YAC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
LFP (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.44" H (160.0mm x 74.9mm x 36.6mm) |
|
|
LFP150F-36-J1YAC/DC CONVERTER 36V |
0 |
|
Таблицы данных |
LFP (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.44" H (160.0mm x 74.9mm x 36.6mm) |
|
|
LFP150F-36-YAC/DC CONVERTER 36V |
0 |
|
Таблицы данных |
LFP (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.44" H (160.0mm x 74.9mm x 36.6mm) |
|
|
LFP150F-48-J1YAC/DC CONVERTER 48V |
0 |
|
Таблицы данных |
LFP (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.44" H (160.0mm x 74.9mm x 36.6mm) |
|
|
LFA150F-24-HJ1RAC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
LFA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) |
|
|
LFA150F-24-HJ1R2AC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
LFA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) |
|
|
LFA150F-24-HRAC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
LFA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) |
|
|
LFA150F-24-HR2AC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
LFA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) |
|
|
LFA150F-24-HR2YAC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
LFA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) |
|
|
LFA150F-24-HRYAC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
LFA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) |
|
PBA50F-24-MNAC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
PBA (50W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
|
PBA100F-36-GJ1NAC/DC CONVERTER 36V |
0 |
|
Таблицы данных |
PBA (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
|
PBW50F-15-ENAC/DC CONVERTER +/-15V |
0 |
|
Таблицы данных |
PBW (50W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1.7 A | 2.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
|
PBW50F-15-GNAC/DC CONVERTER +/-15V |
0 |
|
Таблицы данных |
PBW (50W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1.7 A | 2.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
|
PBW50F-5-ENAC/DC CONVERTER +/-5V |
0 |
|
Таблицы данных |
PBW (50W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | -5V | - | - | - | - | 3 A | 4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
