БОМ
Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM40S360-CAAC/DC CONVERTER 36V 40W |
0 |
|
Таблицы данных |
CFM40S (40W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.11 A | - | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
CFM40S480-CAAC/DC CONVERTER 48V 40W |
0 |
|
Таблицы данных |
CFM40S (40W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 834 mA | - | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
PS3L-A12AFFPOWER SUPPLY 10W 12VDC FRAME |
0 |
|
Таблицы данных |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ECP60UT01AC/DC CONVERTER 5V +/-12V 60W |
0 |
|
Таблицы данных |
ECP (60W) | Box | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 7 A | 3 A | 300 mA | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
|
ECP60UT03AC/DC CONVERTER 5V 24V 12V 60W |
0 |
|
Таблицы данных |
ECP (60W) | Box | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5V | 24V | 12V | - | - | - | 7 A | 1.5 A | 300 mA | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
AOPS30-15AC/DC CONVERTER 15V 30W |
1 |
|
Таблицы данных |
AOPS30 (30W) | Retail Package | Active | Enclosed | 1 | 88 ~ 264 VAC, 240 ~ 370 VDC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm) |
|
|
AOPS30-5AC/DC CONVERTER 5V 30W |
1 |
|
Таблицы данных |
AOPS30 (30W) | Retail Package | Active | Enclosed | 1 | 88 ~ 264 VAC, 240 ~ 370 VDC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm) |
|
|
PBA15F-12-VNAC/DC CONVERTER 12V |
0 |
|
Таблицы данных |
PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-15-VNAC/DC CONVERTER 15V |
0 |
|
Таблицы данных |
PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-24-VNAC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-3R3-VNAC/DC CONVERTER 3.3V |
0 |
|
Таблицы данных |
PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-48-VNAC/DC CONVERTER 48V |
0 |
|
Таблицы данных |
PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 350 mA | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-5-VNAC/DC CONVERTER 5V |
0 |
|
Таблицы данных |
PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-9-NAC/DC CONVERTER 9V |
0 |
|
Таблицы данных |
PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 1.7 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-9-VNAC/DC CONVERTER 9V |
0 |
|
Таблицы данных |
PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 1.7 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|

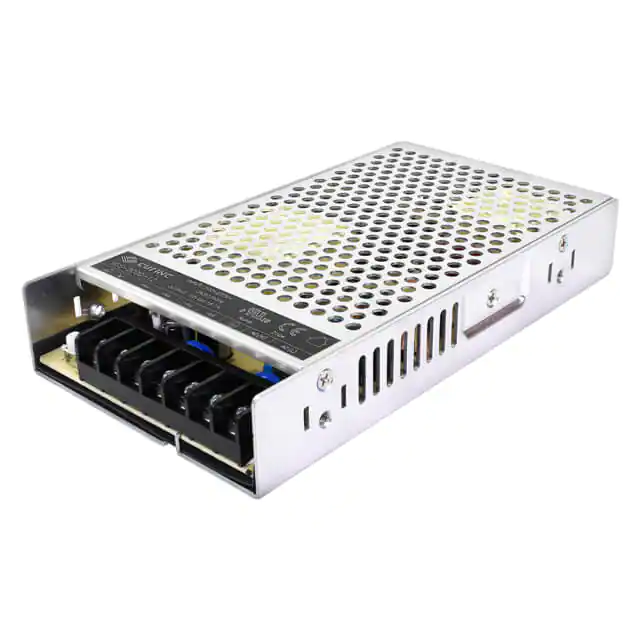

VGS-200D-12-BAC/DC CONVERTER 12V 200W |
0 |
|
Таблицы данных |
VGS-200D (201W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
|
VGS-200D-15-BAC/DC CONVERTER 15V 201W |
0 |
|
Таблицы данных |
VGS-200D (201W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 13.4 A | - | - | - | - | - | 201W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
|
VGS-200D-24-BAC/DC CONVERTER 24V 202W |
0 |
|
Таблицы данных |
VGS-200D (201W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|

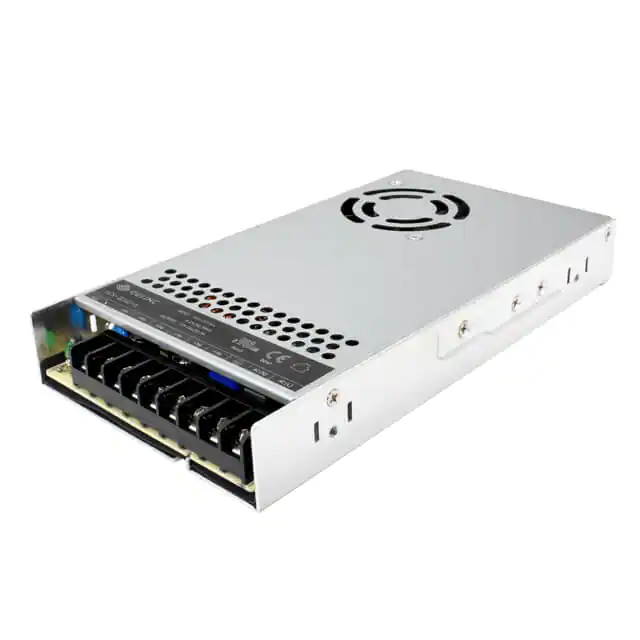

VGS-200D-5-BAC/DC CONVERTER 5V 200W |
0 |
|
Таблицы данных |
VGS-200D (201W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
|
VGS-200D-48-BAC/DC CONVERTER 48V 202W |
0 |
|
Таблицы данных |
VGS-200D (201W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
