Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QPDF-100-48AC/DC CONVERTER 48V 100W |
0 |
|
Таблицы данных |
QPDF-100 (100W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.64" L x 3.90" W x 1.97" H (194.0mm x 99.0mm x 50.0mm) |
|
|
SWF050P-24-RAC/DC CONVERTER 24V 50W |
0 |
|
Таблицы данных |
SWF050P (50W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 5.20" L x 1.97" W x 1.12" H (132.0mm x 50.0mm x 28.5mm) |
|
|
CFM60S033-CAAC/DC CONVERTER 3.3V 26W |
0 |
|
Таблицы данных |
CFM60S (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | - | - | 8 A | - | - | - | - | - | 26W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
CFM60S090-CAAC/DC CONVERTER 9V 60W |
0 |
|
Таблицы данных |
CFM60S (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
CFM60S120-CAAC/DC CONVERTER 12V 60W |
0 |
|
Таблицы данных |
CFM60S (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
CFM60S150-CAAC/DC CONVERTER 15V 60W |
0 |
|
Таблицы данных |
CFM60S (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
CFM60S240-CAAC/DC CONVERTER 24V 60W |
0 |
|
Таблицы данных |
CFM60S (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
CFM60S300-CAAC/DC CONVERTER 30V 60W |
0 |
|
Таблицы данных |
CFM60S (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 30V | - | - | - | - | - | 2 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
CFM60S360-CAAC/DC CONVERTER 36V 60W |
0 |
|
Таблицы данных |
CFM60S (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
CFM60S480-CAAC/DC CONVERTER 48V 60W |
0 |
|
Таблицы данных |
CFM60S (60W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
DGK060-3AC/DC CONVERTER 18V 60W |
0 |
|
Таблицы данных |
Tri-Mag, DGK060 (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 18V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 60W | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.97" H (101.6mm x 50.8mm x 24.6mm) |
|
CFM150M120AC/DC CONVERTER 12V 150W |
0 |
|
Таблицы данных |
CFM150M (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 5.656 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) |
|
VMS-120C-24-CNFAC/DC CONVERTER 24V 120W |
0 |
|
Таблицы данных |
VMS-120C-CNF (120W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W | Household Appliances, Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) |
|
|
CUS60M-15/AAC/DC CONVERTER 15V 60W |
0 |
|
Таблицы данных |
CUS60M (60W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.48" L x 2.52" W x 1.59" H (88.4mm x 64.0mm x 40.5mm) |
|
|
CUS60M-18/AAC/DC CONVERTER 18V 59W |
0 |
|
Таблицы данных |
CUS60M (60W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 18V | - | - | - | - | - | 3.25 A | - | - | - | - | - | 59W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.48" L x 2.52" W x 1.59" H (88.4mm x 64.0mm x 40.5mm) |
|
|
CUS60M-48/AAC/DC CONVERTER 48V 60W |
0 |
|
Таблицы данных |
CUS60M (60W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.48" L x 2.52" W x 1.59" H (88.4mm x 64.0mm x 40.5mm) |
|
LGA75A-12-YAC/DC CONVERTER 12V |
0 |
|
Таблицы данных |
LGA (75W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.36" H (150.1mm x 50.0mm x 34.5mm) |
|

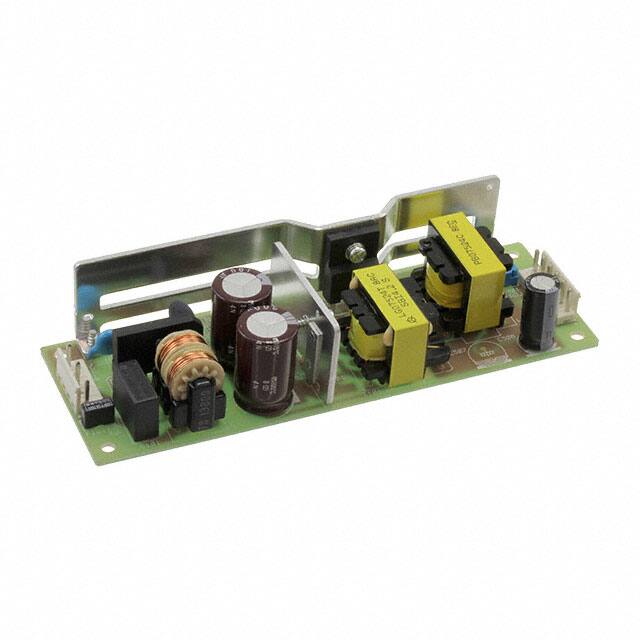

LGA75A-24-YAC/DC CONVERTER 24V |
0 |
|
Таблицы данных |
LGA (75W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.36" H (150.1mm x 50.0mm x 34.5mm) |
|

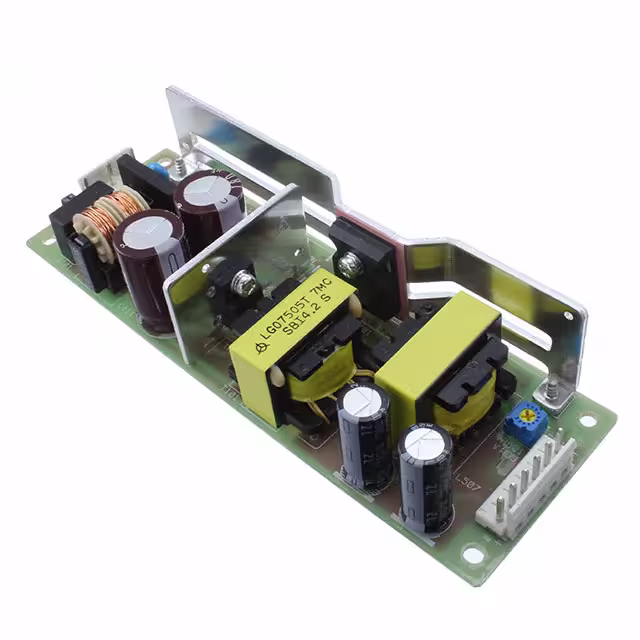

LGA75A-3R3-YAC/DC CONVERTER 3.3V |
0 |
|
Таблицы данных |
LGA (75W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 3.3V | - | - | - | - | - | 15 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.36" H (150.1mm x 50.0mm x 34.5mm) |
|

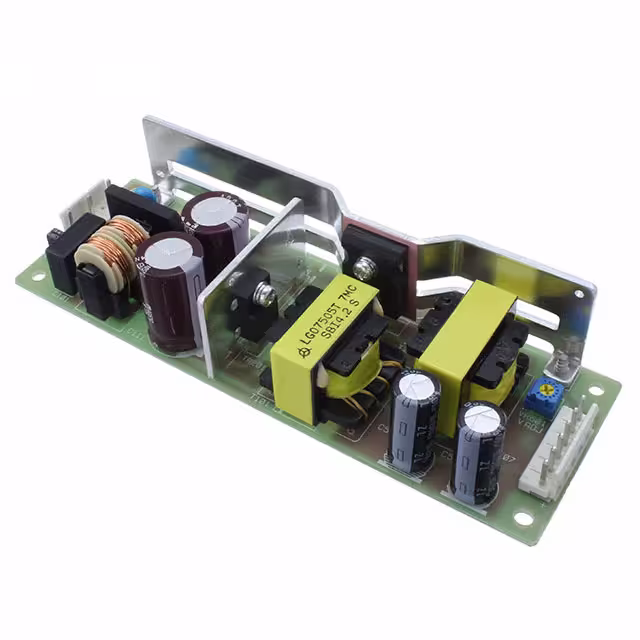

LGA75A-5-YAC/DC CONVERTER 5V |
0 |
|
Таблицы данных |
LGA (75W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.36" H (150.1mm x 50.0mm x 34.5mm) |
