Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LO120-20B48MUAC/DC CONVERTER 48V 84W |
24 |
|
Таблицы данных |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
|
LO120-20B54MUAC/DC CONVERTER 54V 84W |
22 |
|
Таблицы данных |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 54V | - | - | - | - | - | 2.22 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
|
LO120-20B12MUAC/DC CONVERTER 12V 84W |
21 |
|
Таблицы данных |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
|
LO120-20B36MUAC/DC CONVERTER 36V 84W |
21 |
|
Таблицы данных |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
|
LO120-20B27MUAC/DC CONVERTER 27V 84W |
18 |
|
Таблицы данных |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 4.44 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
|
LO120-20B24MUAC/DC CONVERTER 24V 84W |
12 |
|
Таблицы данных |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
LCW35US05AC/DC CONVERTER 5V 35W |
58 |
|
Таблицы данных |
LCW35 (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM35-23B15-CAC/DC CONVERTER 15V 36W |
6 |
|
Таблицы данных |
LM35-23Bxx-C (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM35-23B15-QAC/DC CONVERTER 15V 36W |
6 |
|
Таблицы данных |
LM35-23Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
LCW50US15AC/DC CONVERTER 15V 51W |
22 |
|
Таблицы данных |
LCW50 (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 51W | Household Appliances, ITE (Commercial), Industrial | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM150-23B54R2-CQAC/DC CONVERTER 54V 151W |
15 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B12R2-CQAC/DC CONVERTER 12V 150W |
7 |
|
Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|

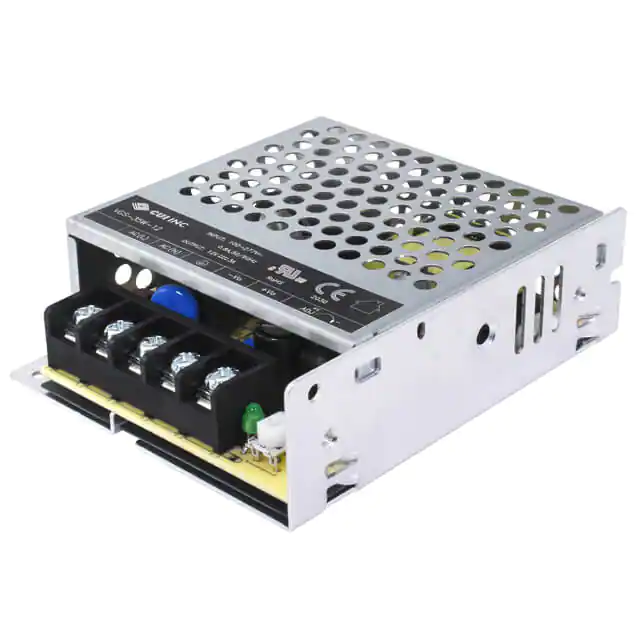

VGS-35W-15AC/DC CONVERTER 15V 36W |
50 |
|
Таблицы данных |
VGS-35W (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
VGS-35W-12AC/DC CONVERTER 12V 36W |
41 |
|
Таблицы данных |
VGS-35W (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
QPS-20-24AC/DC CONVERTER 24V 20W |
85 |
|
Таблицы данных |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 800 mA | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) |
|
VGD-35-D512AC/DC CONVERTER 5V 12V 32W |
87 |
|
Таблицы данных |
VGD-35 | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | 12V | - | - | - | - | 4 A | 1 A | - | - | - | - | 32W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.82" L x 3.64" W x 1.18" H (97.0mm x 92.5mm x 30.0mm) |
|
|
LO50-23B12EOPEN FRAME AC DC CONVERTERS 50.4 |
31 |
|
Таблицы данных |
LO50-23BxxE (50W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.20" L x 2.00" W x 1.07" H (132.0mm x 50.8mm x 27.1mm) |
|
|
LO50-23B48EOPEN FRAME AC DC CONVERTERS 52.8 |
20 |
|
Таблицы данных |
LO50-23xxE (50W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 53W | ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.20" L x 2.00" W x 1.07" H (132.0mm x 50.8mm x 27.1mm) |
|
|
LO50-23B24EOPEN FRAME AC DC CONVERTERS 50.4 |
20 |
|
Таблицы данных |
LO50-23BxxE (50W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.20" L x 2.00" W x 1.07" H (132.0mm x 50.8mm x 27.1mm) |
|
PMC-24V035W1AAAC/DC CONVERTER 24V 35W |
78 |
|
Таблицы данных |
PMC (35W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.46 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) |
