БОМ
Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS150E-5AC/DC CONVERTER 5V 150W |
0 |
|
Таблицы данных |
VSB (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 132 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | ITE (Commercial) | 2.5 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 8.74" L x 2.95" W x 1.42" H (222.0mm x 75.0mm x 36.0mm) |
|
|
ZWS150BP-24/LAC/DC CONVERTER 24V 150W |
0 |
|
Таблицы данных |
ZWS-BP (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) |
|
|
ZWS150BP-36/TAC/DC CONVERTER 36V 150W |
0 |
|
Таблицы данных |
ZWS-BP (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) |
|
|
ZWS150BP-36/TLAC/DC CONVERTER 36V 150W |
0 |
|
Таблицы данных |
ZWS-BP (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) |
|
LEA100F-12AC/DC CONVERTER 12V 100W |
0 |
|
Таблицы данных |
LEA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
|
|
LEA100F-24-SNAC/DC CONVERTER 24V 100W |
0 |
|
Таблицы данных |
LEA (100W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
|
|
LEA100F-48-SNAC/DC CONVERTER 48V 100W |
0 |
|
Таблицы данных |
LEA (100W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
|
LEA150F-24AC/DC CONVERTER 24V 150W |
0 |
|
Таблицы данных |
LEA (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.46" H (222.0mm x 75.0mm x 37.0mm) |
|
LEA50F-12AC/DC CONVERTER 12V 50W |
0 |
|
Таблицы данных |
LEA (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm) |
|
|
LEA50F-24AC/DC CONVERTER 24V 50W |
0 |
|
Таблицы данных |
LEA (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm) |
|
|
LEA50F-48AC/DC CONVERTER 48V 50W |
0 |
|
Таблицы данных |
LEA (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm) |
|

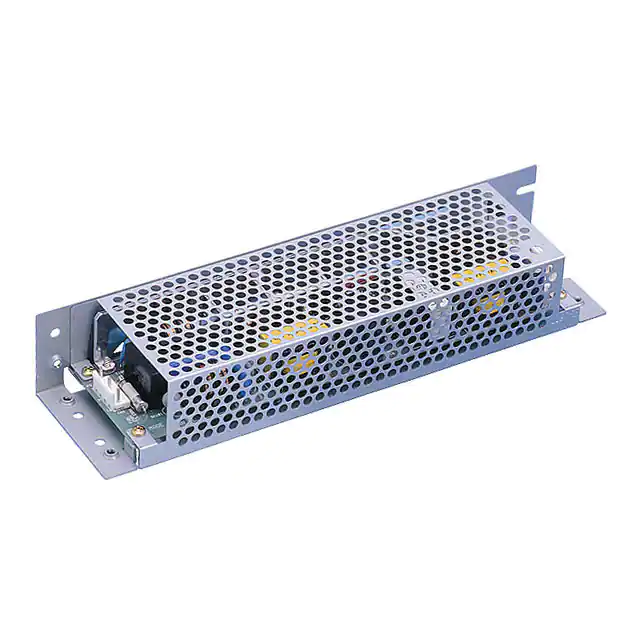

LEA75F-12-SNAC/DC CONVERTER 12V 75W |
0 |
|
Таблицы данных |
LEA (75W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 8.74" L x 2.17" W x 1.14" H (222.0mm x 55.0mm x 29.0mm) |
|
LEP100F-48AC/DC CONVERTER 48V 100W |
0 |
|
Таблицы данных |
LEP (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.38" H (222.0mm x 74.9mm x 35.1mm) |
|
LEP150F-24AC/DC CONVERTER 24V 150W |
0 |
|
Таблицы данных |
LEP (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 8.74" L x 3.35" W x 1.57" H (222.0mm x 85.1mm x 39.9mm) |
|
LEP150F-48-SNAC/DC CONVERTER 48V 150W |
0 |
|
Таблицы данных |
LEP (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 8.74" L x 3.35" W x 1.57" H (222.0mm x 85.1mm x 39.9mm) |
|
|
LEA100F-12-YAC/DC CONVERTER 12V 100W |
0 |
|
Таблицы данных |
LEA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
|
|
LEA100F-15AC/DC CONVERTER 15V 100W |
0 |
|
Таблицы данных |
LEA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
|
|
LEA100F-15-SNAC/DC CONVERTER 15V 100W |
0 |
|
Таблицы данных |
LEA (100W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
|
|
LEA100F-24-HAC/DC CONVERTER 24V 100W |
0 |
|
Таблицы данных |
LEA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
|
|
LEA100F-24-HYAC/DC CONVERTER 24V 100W |
0 |
|
Таблицы данных |
LEA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
