БОМ
Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAC60-24S/OFAC/DC CONVERTER 24V 60W |
0 |
|
Таблицы данных |
POWERLINE RAC60 (60W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|
PSF-100-AAC/DC CONVERTER 2X13.8V 100W |
0 |
|
Таблицы данных |
PSF-100 (100W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 13.8V | 13.8V | - | - | - | - | 7.3 A | 2.9 A | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.80" L x 3.70" W x 1.20" H (123.0mm x 95.0mm x 31.0mm) |
|
|

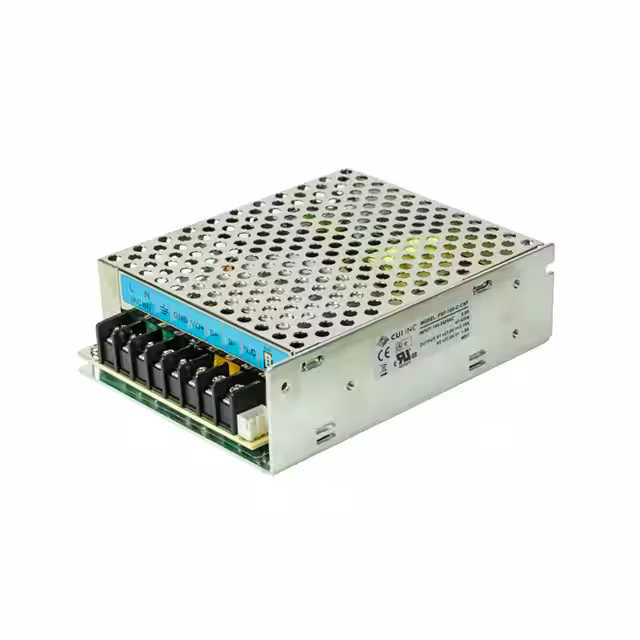

PSF-100-CAC/DC CONVERTER 2X27.6V 100W |
0 |
|
Таблицы данных |
PSF-100 (100W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 27.6V | 27.6V | - | - | - | - | 3.65 A | 1.73 A | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.80" L x 3.70" W x 1.20" H (123.0mm x 95.0mm x 31.0mm) |
|
MVAD160-12AC/DC CONVERTER 12V 110W |
0 |
|
Таблицы данных |
MVAD160 (160W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 13.34 A | - | - | - | - | - | 110W (160W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.50" H (101.6mm x 50.8mm x 38.1mm) |
|
|
MVAD160-24AC/DC CONVERTER 24V 110W |
0 |
|
Таблицы данных |
MVAD160 (160W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 110W (160W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.50" H (101.6mm x 50.8mm x 38.1mm) |
|
|
MVAD160-48AC/DC CONVERTER 48V 110W |
0 |
|
Таблицы данных |
MVAD160 (160W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.34 A | - | - | - | - | - | 110W (160W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.50" H (101.6mm x 50.8mm x 38.1mm) |
|
|
MVAD160-125AC/DC CONVERTER 12V 110W |
0 |
|
Таблицы данных |
MVAD160 (160W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 13.34 A | - | - | - | - | - | 110W (160W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.50" H (101.6mm x 50.8mm x 38.1mm) |
|
MVAD065-05AC/DC CONVERTER 5V 55W |
0 |
|
- |
MVAD065 (65W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 11 A | - | - | - | - | - | 55W | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.30" H (101.6mm x 50.8mm x 33.1mm) |
|

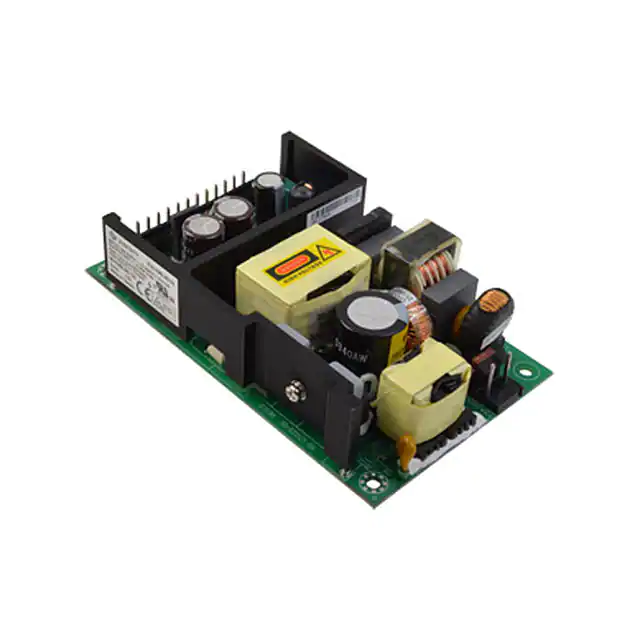

VMS-80-12AC/DC CONVERTER 12V 80W |
0 |
|
Таблицы данных |
VMS-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 260 VAC | 12V | - | - | - | - | - | 6.66 A | - | - | - | - | - | 80W | Medical | 5.656 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.01" W x 1.10" H (127.0mm x 76.5mm x 27.9mm) |
|
|
VMS-80-18AC/DC CONVERTER 18V 80W |
0 |
|
Таблицы данных |
VMS-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 260 VAC | 18V | - | - | - | - | - | 4.44 A | - | - | - | - | - | 80W | Medical | 5.656 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.01" W x 1.10" H (127.0mm x 76.5mm x 27.9mm) |
|
|
VMS-80-24AC/DC CONVERTER 24V 80W |
0 |
|
Таблицы данных |
VMS-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 260 VAC | 24V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 80W | Medical | 5.656 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.01" W x 1.10" H (127.0mm x 76.5mm x 27.9mm) |
|
|
VMS-80-36AC/DC CONVERTER 36V 80W |
0 |
|
Таблицы данных |
VMS-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 260 VAC | 36V | - | - | - | - | - | 2.22 A | - | - | - | - | - | 80W | Medical | 5.656 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.01" W x 1.10" H (127.0mm x 76.5mm x 27.9mm) |
|
|
VMS-80-5AC/DC CONVERTER 5V 80W |
0 |
|
Таблицы данных |
VMS-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 260 VAC | 5V | - | - | - | - | - | 14 A | - | - | - | - | - | 80W | Medical | 5.656 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.01" W x 1.10" H (127.0mm x 76.5mm x 27.9mm) |
|
|
VMS-80-9AC/DC CONVERTER 9V 80W |
0 |
|
Таблицы данных |
VMS-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 260 VAC | 9V | - | - | - | - | - | 8.89 A | - | - | - | - | - | 80W | Medical | 5.656 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.01" W x 1.10" H (127.0mm x 76.5mm x 27.9mm) |
|
PMB-12V35W1AHAC/DC CONVERTER 12V 35W |
0 |
|
Таблицы данных |
PMT (35W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.92 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) |
|
PMB-24V35W1AHAC/DC CONVERTER 24V 35W |
0 |
|
Таблицы данных |
PMT (35W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.46 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) |
|
PMB-24V50W1AHAC/DC CONVERTER 24V 50W |
0 |
|
Таблицы данных |
PMT (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) |
|
PMC-24V035W1AJAC/DC CONVERTER 24V 35W |
0 |
|
Таблицы данных |
PMC (35W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.46 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) |
|
PMC-24V050W1AJAC/DC CONVERTER 24V 50W |
0 |
|
Таблицы данных |
PMC (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) |
|
PMC-24V075W1AJAC/DC CONVERTER 24V 75W |
0 |
|
Таблицы данных |
PMC (75W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.12 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) |
