Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

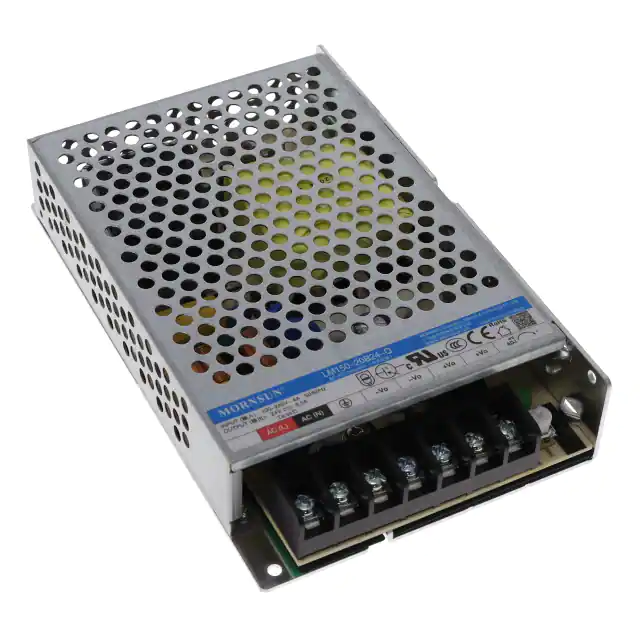

LM150-20B24-QAC/DC CONVERTER 24V 156W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM150-20Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

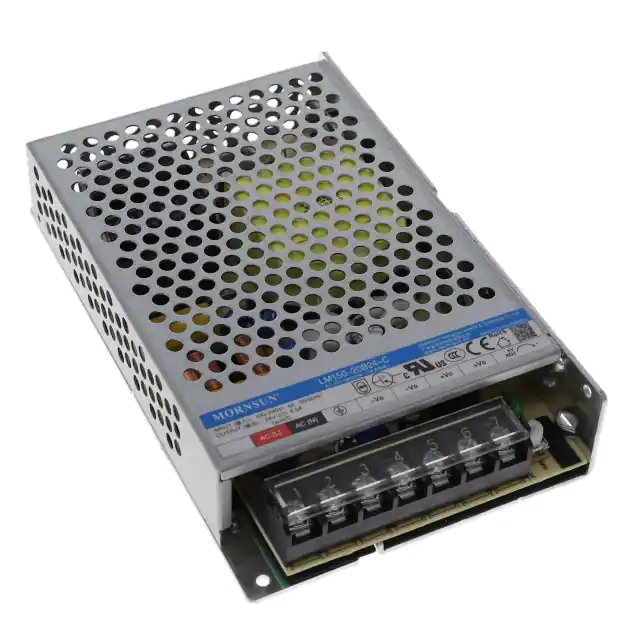

LM150-20B24-CAC/DC CONVERTER 24V 156W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM150-20Bxx-C (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

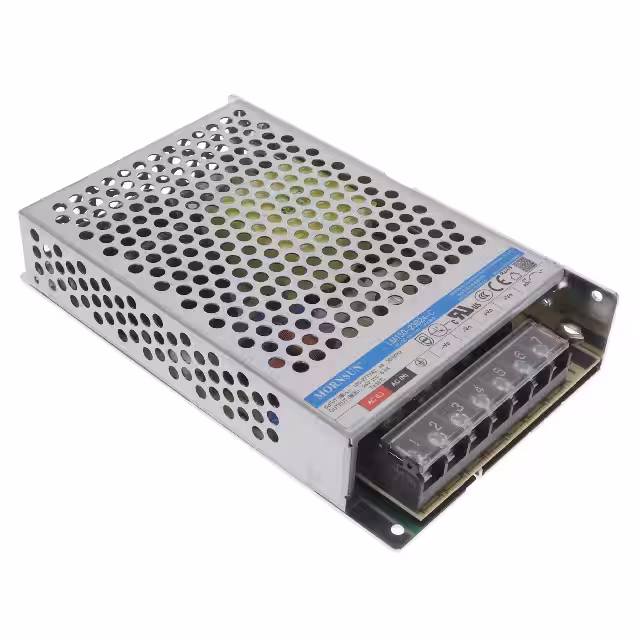

LM150-23B24-CAC/DC CONVERTER 24V 156W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM150-23Bxx-C (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

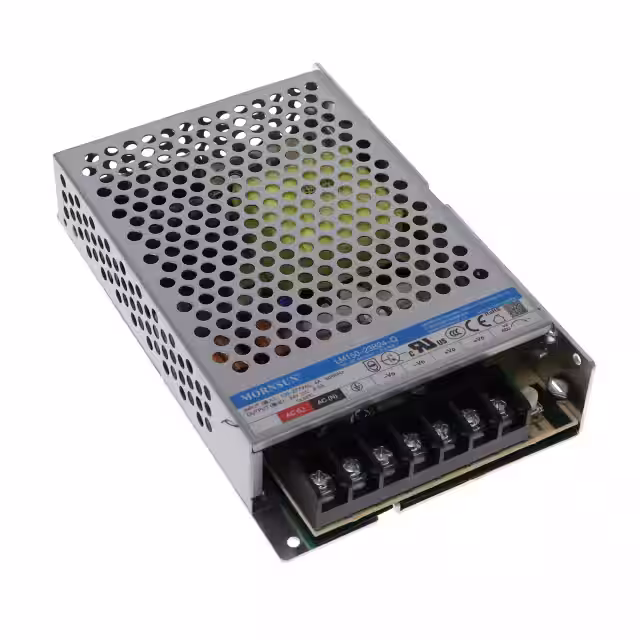

LM150-23B24-QAC/DC CONVERTER 24V 156W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM150-23Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-10B36AC/DC CONVERTER 36V 212W Mornsun America, LLC |
4 |
|
![]() Таблицы данных |
LM200-10Bxx (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 36V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 212W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
![]() |
LMF200-23B48UHAC/DC CONVERTER 48V 202W Mornsun America, LLC |
2 |
|
![]() Таблицы данных |
LMF200-23BxxUH (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
![]() |
LOF225-23B54R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 54V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
![]() |
LOF225-23B18R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 18V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
![]() |
LOF225-23B15R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
![]() |
LOF225-23B19R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 19V | - | - | - | - | - | 11.84 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
