Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM200-22B24R2-CQENCLOSED AC DC CONVERTERS 211.2W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM200-22BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 305 VAC, 240 ~ 430 VDC | 24V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-22B48R2-CQENCLOSED AC DC CONVERTERS 211.2W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM200-22BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 305 VAC, 240 ~ 430 VDC | 48V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-22B15R2-CQENCLOSED AC DC CONVERTERS 210W 1 Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM200-22BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 305 VAC, 240 ~ 430 VDC | 15V | - | - | - | - | - | 14 A | - | - | - | - | - | 210W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

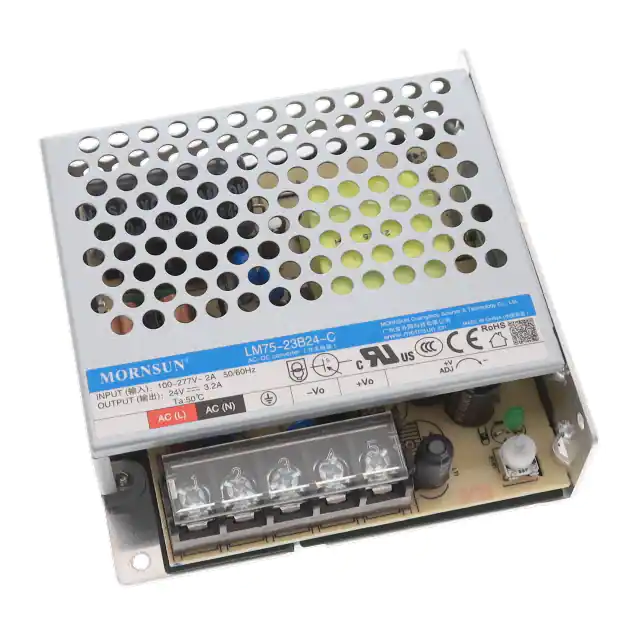

LM75-23B24-CAC/DC CONVERTER 24V 77W Mornsun America, LLC |
15 |
|
![]() Таблицы данных |
LM75-23Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |

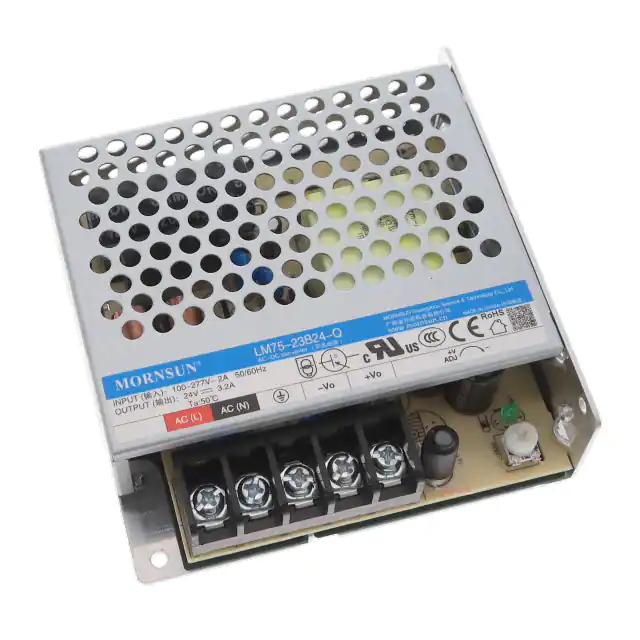

LM75-23B24-QAC/DC CONVERTER 24V 77W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM75-23Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |

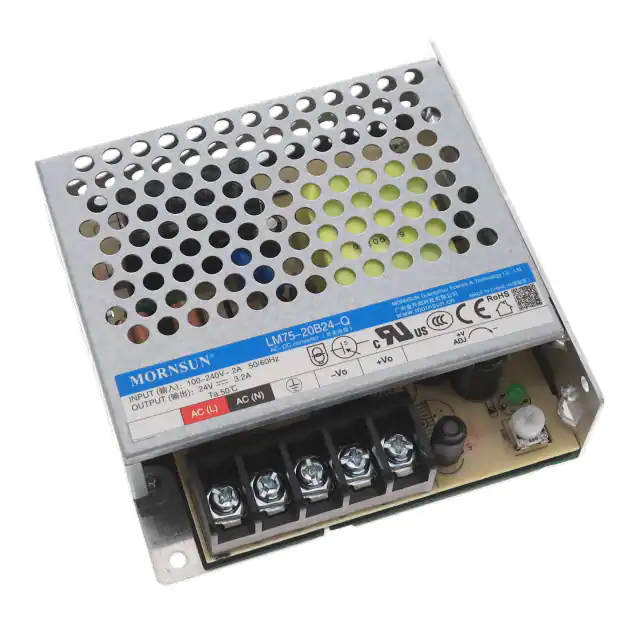

LM75-20B24-QAC/DC CONVERTER 24V 77W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-20B12R2-QENCLOSED AC DC CONVERTERS 204W 1 Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM200-20BxxR2-Q (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 90 ~ 264 VAC, 240 ~ 370 VDC | 12V | - | - | - | - | - | 17 A | - | - | - | - | - | 204W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-20B54R2-CENCLOSED AC DC CONVERTERS 210.6W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM200-20BxxR2-C (204W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 240 ~ 370 VDC | 54V | - | - | - | - | - | 3.9 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-20B48R2-QENCLOSED AC DC CONVERTERS 211.2W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM200-20BxxR2-Q (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 90 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-20B24R2-CENCLOSED AC DC CONVERTERS 211.2W Mornsun America, LLC |
0 |
|
![]() Таблицы данных |
LM200-20BxxR2-C (204W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
