Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LM100-20B05AC/DC CONVERTER 5V 90W Mornsun America, LLC |
44 |
|
![]() Таблицы данных |
LM100-20Bxx (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 18 A | - | - | - | - | - | 90W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-20B24R2AC/DC CONVERTER 24V 211W Mornsun America, LLC |
59 |
|
![]() Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |
LM200-20B15R2AC/DC CONVERTER 15V 210W Mornsun America, LLC |
31 |
|
![]() Таблицы данных |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 15V | - | - | - | - | - | 14 A | - | - | - | - | - | 210W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
![]() |

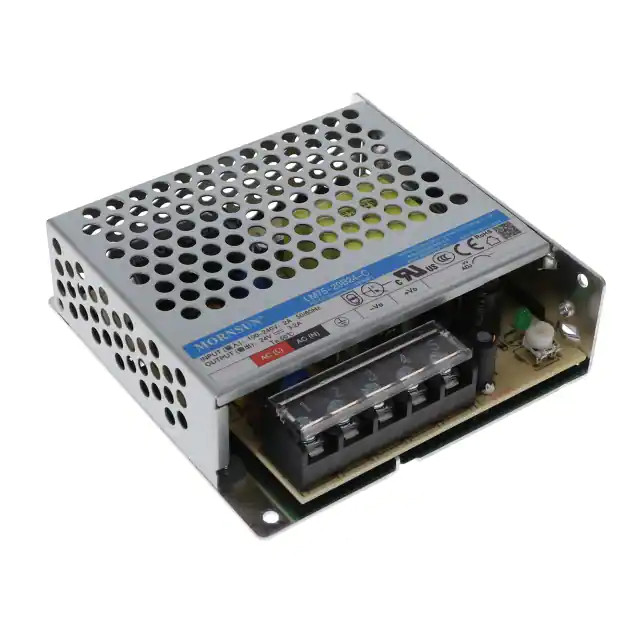

LM75-20B24-CAC/DC CONVERTER 24V 77W Mornsun America, LLC |
14 |
|
![]() Таблицы данных |
LM75-20Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |

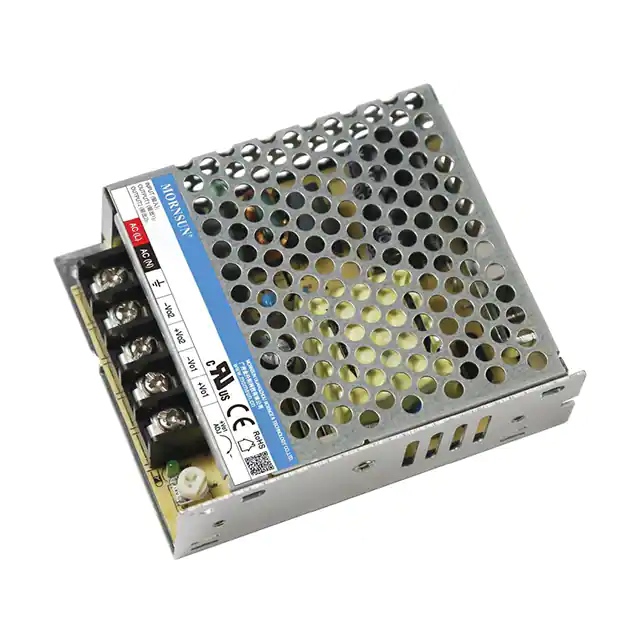

LM35-10D0524-10AC/DC CONVERTER 5V 24V 35W Mornsun America, LLC |
28 |
|
![]() Таблицы данных |
LM35-10Dxx (35W) | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | 24V | - | - | - | - | 2.2 A | 1 A | - | - | - | - | 35W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM35-10D0512-10AC/DC CONVERTER 5V 12V 32W Mornsun America, LLC |
24 |
|
![]() Таблицы данных |
LM35-10Dxx (35W) | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | 12V | - | - | - | - | 4 A | 1 A | - | - | - | - | 32W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM75-23B15-QAC/DC CONVERTER 15V 75W Mornsun America, LLC |
27 |
|
![]() Таблицы данных |
LM75-23Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM75-20B15-QAC/DC CONVERTER 15V 75W Mornsun America, LLC |
6 |
|
![]() Таблицы данных |
LM75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM75-23B15-CAC/DC CONVERTER 15V 75W Mornsun America, LLC |
6 |
|
![]() Таблицы данных |
LM75-23Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
![]() |
LM100-20B24-CAC/DC CONVERTER 24V 108W Mornsun America, LLC |
9 |
|
![]() Таблицы данных |
LM100-20Bxx-C (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
