Преобразователи переменного и постоянного тока
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Рабочая температура | Особенности | Тип крепления | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPP 100-124AC/DC CONVERTER 24V 100W Traco Power |
250 |
|
Таблицы данных |
TPP 100 (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | -25°C ~ 85°C (With Derating) | Adjustable Output, IP20, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.54" H (91.4mm x 62.0mm x 39.1mm) |
|
TPP 100-112AC/DC CONVERTER 12V 100W Traco Power |
216 |
|
Таблицы данных |
TPP 100 (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | -25°C ~ 85°C (With Derating) | Adjustable Output, IP20, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.54" H (91.4mm x 62.0mm x 39.1mm) |
|
TPP 300-112A-MAC/DC CONVERTER 12V 180W Traco Power |
28 |
|
Таблицы данных |
TPP 300A-M (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 180W (300W Forced Air) | ITE (Commercial), Medical | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) |
|
TML 100-124CAC/DC CONVERTER 24V 101W Traco Power |
98 |
|
Таблицы данных |
TML 100C (85-100W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 101W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 5.60" L x 2.48" W x 1.46" H (142.2mm x 63.0mm x 37.1mm) |
|
TPP 450-124-MAC/DC CONVERTER 24V 450W Traco Power |
28 |
|
Таблицы данных |
TPP 450 (450W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 18.75 A | - | - | - | - | - | 450W | ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Remote On/Off, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|
TPP 30-105A-JAC/DC CONVERTER 5V 30W Traco Power |
32 |
|
Таблицы данных |
TPP 30A-J (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.34" L x 1.36" W x 0.77" H (84.8mm x 34.5mm x 19.6mm) |
|
TMP 15105CAC/DC CONVERTER 5V 15W Traco Power |
31 |
|
Таблицы данных |
TMP (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Industrial, ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.1mm x 23.4mm) |
|
TPP 40-112A-JAC/DC CONVERTER 12V 40W Traco Power |
338 |
|
Таблицы данных |
TPP 40A (40W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 3.34 A | - | - | - | - | - | 40W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 23.9mm) |
|
TMP 15215CAC/DC CONVERTER +/-15V 15W Traco Power |
33 |
|
Таблицы данных |
TMP (15W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | -15V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | 15W | Industrial, ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.1mm x 23.4mm) |
|

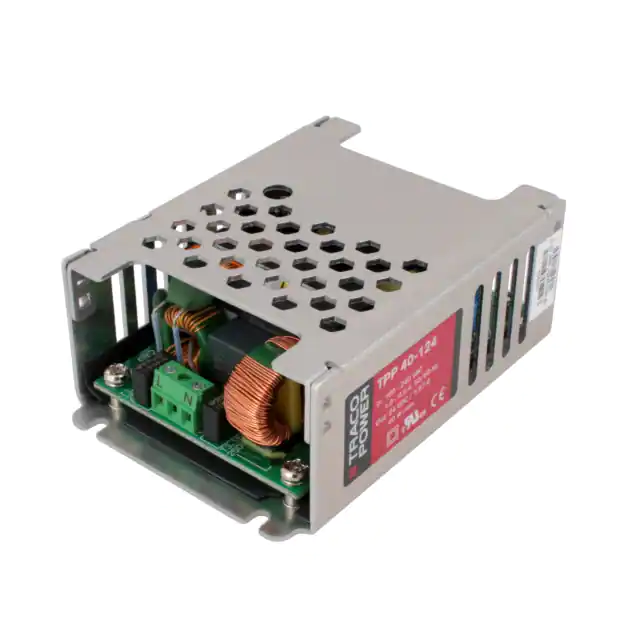

TPP 40-124AC/DC CONVERTER 24V 40W Traco Power |
59 |
|
Таблицы данных |
TPP 40 (40W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 40W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.53" L x 2.38" W x 1.31" H (89.7mm x 60.5mm x 33.3mm) |
